Autel Robotics EVO II Dual 640T Rugged Bundle V2

Autel Robotics EVO II Dual 640T Rugged Bundle V2

$4,399.00 Sale

Key Features
  • Dual Thermal & Visible Light Cameras
  • 3-Axis Gimbal
  • Omnidirectional Obstacle Avoidance
  • Remote with Built-In 3.26" OLED
  • Up to 8K Visible Video Resolution
  • Up to 48MP Visible Image Resolution
  • -20 to 550°F Temperature Detection
  • Up to 5.6-Mile Video Transmission Range
  • Up to 38 Minutes of Flight Time
  • Hard-Shell Case & 3 Batteries Included

Autel Robotics EVO II Dual 640T V2 Overview

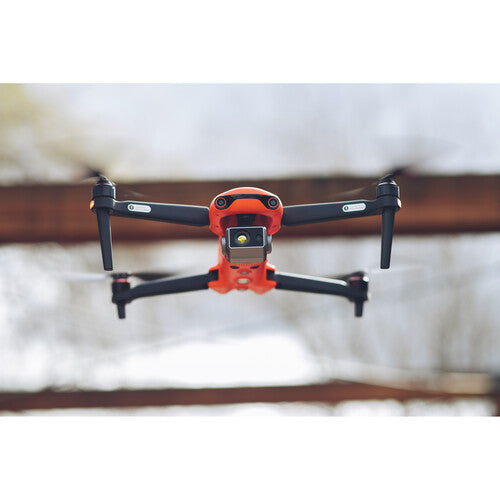

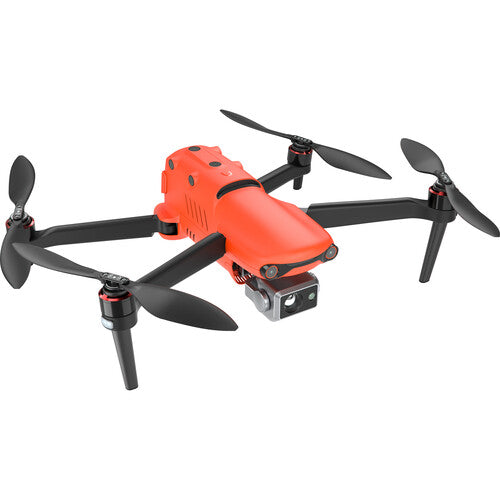

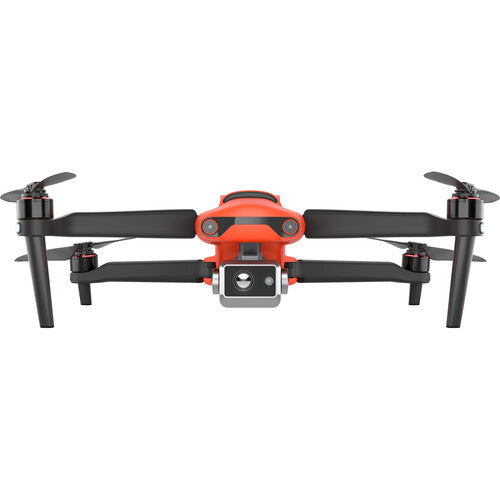

If you're in need of robust industrial or first responder aerial imaging, the EVO II Dual 640T Rugged Bundle V2 from Autel Robotics has you covered with a dual-camera system that includes visible light and thermal cameras. Whether you're inspecting hazardous machinery or looking for lost individuals, the thermal camera provides -20 to 550°F detection with 1-16x zoom, so you can safely do your job while keeping the drone out of harm's way. The visible camera can help with enterprise-level missions or film stunning footage at up to 8K resolution. To ensure the EVO II Dual 640T can handle nearly any task, Autel outfitted it with Level 8 wind resistance and an omnidirectional obstacle avoidance system.



Dual-Camera System
The stabilizing 3-axis gimbal is equipped with thermal and visible light camera sensors. The thermal camera gives you the seemingly super power of spotting heat signatures of -20 to 550°F, making spotting people, animals, and faulty equipment much easier. You can capture this footage from a distance thanks to 1-16x digital zoom and use picture-in-picture mode to view the visible light image of your subject at the same time.



The visible light camera can take brilliant video footage at up to 8K, making the EVO II Dual 640T capable of not just enterprise tasks, but also high-end creative filmmaking. The 1/2" CMOS sensor is also capable of snapping highly detailed stills at up to 48MP. This camera also supports zoom abilities, but from 1-4x is lossless optical, with 5-16x utilizing digital zoom. It also provides additional features and modes, such as HDR support, up to 8-second exposure, time-lapse, HyperLight, single shot, and burst shooting.

Fly Far and Fast
The EVO II Dual 640T can get to a hotspot quickly with a maximum flight speed of up to 44.7 mph, transmitting a live video feed to pilots from up to 5.6 miles away.
Remote with Built-In Display
Piloting is easier and more intuitive when using the EVO II Dual 640T's included remote controller. There's no need to mount and set up a smartphone, as the remote features a built-in 3.26" OLED and is capable of displaying a live video feed at up to 1080p30 resolution. Support for dual-band 2.4 and 5.8 GHz wireless transmission helps keep the video feed smooth and stable.



Ready for Action
Included with the EVO II Dual 640T drone is a host of accessories designed to support and extend your flights and help you get all your gear onsite and undamaged. Some accessory highlights include a hard-shell case for the drone and accessories, two additional flight batteries (a third comes preinstalled), and a 32GB SD card for recording additional images and videos.



Additional Features
  • Up to 38 minutes of flight time per battery
  • 8GB of internal storage
  • SD card slot that supports optional cards up to 256GB

Autel Robotics EVO II Dual 640T V2 Specs

Performance
Maximum Takeoff Weight 4.4 lb / 2000 g
Maximum Horizontal Speed 44.7 mph / 20 m/s (Ludicrous)
Maximum Ascent Speed 17.9 mph / 8 m/s
Maximum Descent Speed 8.9 mph / 4 m/s
Flight Ceiling 4.3 Miles / 7000 m
Maximum Flight Time 38 Minutes
Maximum Hover Time 33 Minutes
Hovering Accuracy ±0.07' / 0.02 m Vertical with Vision Positioning
±0.7' / 0.2 m Vertical with GPS
±0.07' / 0.02 m Horizontal with Vision Positioning
±1.6' / 0.5 m Horizontal with GPS
Maximum Angular Velocity 120°/s (Pitch)
Camera
Sensor Type 1/2"-Type CMOS Sensor
Sensor Resolution Effective: 48 Megapixel (8000 x 6000)
Focal Length 25.6mm (35mm Equivalent)
Field of View 79°
Minimum Aperture f/1.8
Minimum Focus Distance 1.6' / 0.5 m
ISO Sensitivity Video
100 to 6400
100 to 3200
Video Format 7680 x 4320p at 24/25 fps (120 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC, MPEG-4)
5760 x 3240p at 24/25/30 fps (120 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC, MPEG-4)
3840 x 2160p at 24/25/30/48/50/60 fps (120 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC, MPEG-4)
2720 x 1528p at 24/25/30/48/50/60/120 fps (120 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC, MPEG-4)
1920 x 1080p at 24/25/30/48/50/60/120 fps (120 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC, MPEG-4)
Broadcast Resolution None
Still Image Support DNG / JPEG
(8000 x 6000)
(7680 x 4320)
(4000 x 3000)
(3840 x 2160)
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC [256 GB Maximum]
Photo Modes Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot
Second Camera
Camera Resolution Infrared Mode: 640 x 512
Picture-in-Picture Mode: 1920 x 1080, 1280 x 720
Photo Modes Single Shot
Burst Shooting: 3/5 Frames (3 is the Default)
Time Lapse: (JPG) 2, 5, 7, 10, 20, 30, and 60 Seconds (5 Seconds is the Default)
Photo Format TIFF & JPG (With IRG File)
Sensor Uncooled VOx Microbolometer
Lens FOV 33@deg; (Horizontal)
FOV 26° (Vertical)
Focal length: 13 mm
Zoom 1-16x
Sensor Resolution 640 x 512
Pixel Size 12 μm
Wavelength Range 8-14 μm
Temperature Range High Gain Mode: -20° to +150°
Low Gain Mode: 0° to +550°
Temperature Measurement Accuracy: ±5.4°F /±3°C or ±3% of Reading (Whichever is Greater)
Accuracy: Environmental Temperature: -4 to 140°F / -20 to 60°C
Distance: 6.6 x 65.6' / 2.0 x 20.0 m
Video Resolution 640 x 512 @ 30 fps
Video Format MOV & MP4 (Support H.264/H.265)
Gimbal
Number of Axes 3 (Pitch, Roll, Yaw)
Control Range Pitch: -90 to 30°
Yaw: -90 to 90°
Angular Speed Pitch: 300°/s
Flight Control System
GNSS Support Not Specified by Manufacturer
3D Object Detection
Operating Range Not Specified by Manufacturer
Vision System
Vision System Downward, Forward, Backward, Left, Right
Operating Range 0.0 to 131.2' / 0.0 to 40.0 m
Obstacle Sensory Range 1.6 to 65.6' / 0.5 to 20.0 m
Forward Field of View 60° (Horizontal)
80° (Vertical)
Downward Field of View 100° (Side to Side)
80° (Front to Back)
Backward Field of View 60° (Horizontal)
80° (Vertical)
Operating Environment Surface with Clear Patterns at >15 lux
Remote Controller / Transmitter
Operating Frequency 2.4 GHz (2.400 to 2.484)
5.8 GHz (5.725 to 5.850)
Maximum Operating Distance 5.6 Miles / 9 km
Transmitter Power 27 dBm (2.4 G)
27 dBm (5.8 G)
Battery Capacity 5000 mAh
Built-In Display Size 3.26"
Display Resolution 854 x 480
Flight Battery
Battery Chemistry Lithium-Ion Polymer (LiPo)
Battery Capacity 7100 mAh / 82 Wh
Battery Configuration 3 S / 11.55 V
Maximum Charging Power 93 W
Operating Temperature 14 to 104°F / -10 to 40°C
Charging Temperature 41 to 113°F / 5 to 45°C
Weight 12.9 oz / 365 g
Charger
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 1.5 A
Output Voltage 13.2 V, 5 A
12 V, 1.5 A
9 V, 2 A
5 V, 3 A
Power Rating 66 W
General
Rotor Configuration 4
Diagonal Size 15.6" / 397 mm
Overall Dimensions 25.0 x 4.4 x 20.0" / 634.0 x 111.0 x 508.0 mm
Packaging Info
Package Weight 15 lb
Box Dimensions (LxWxH) 17 x 14.5 x 8.25"

Export of Thermal Imaging Equipment or related accessories (such as manuals) is strictly regulated by the US Department of State in accordance with the guidelines of the International Traffic in Arms Regulations (ITAR).  It is a major crime to ship or carry US manufactured thermal imaging devices outside the borders of the United States, punishable by fines and prison sentences.  Ignorance of these regulations will not hold up in court.  By purchasing thermal imaging equipment from Thermal Optics Plus, you attest that you will not attempt to export or carry this thermal imaging equipment outside the borders of the United States.  Also, it illegal to allow a non-US Citizen to look through US Thermal Imaging Equipment, even on US soil.  Again, this is a crime punishable by fines and prison sentences.
