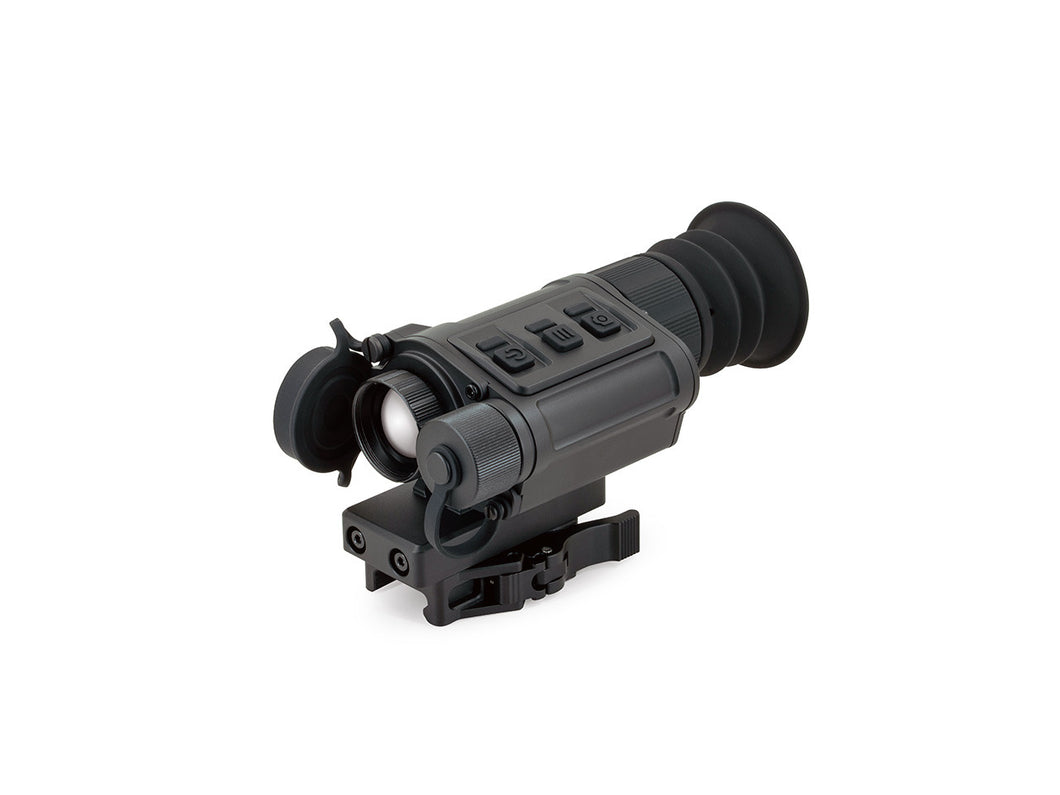

InfiRay Outdoor RICO 384 MICRO RL25 V2 2x 25mm Multi-Purpose Helmet Mountable / Monocular / Clip-On / Rifle Scope (Currently on Sale!)
Regular price
$3,749.00
$2,499.00
Sale
The RICO MICRO has been regarded as one of the most powerful and versatile thermal optics on the market. The new RL25 V2 is an evolution that keeps the well-known compact form factor and advanced feature set, while adding user-requested features and system enhancements focused on improving image quality and ease-of-use.
In its newest variation, the RL25 V2 has been updated to provide users with powerful enhancements while retaining the versatility that our customers love; use it as a handheld scanner, helmet-mounted monocular, weapon sight and now a thermal clip-on! The 384x288 12 µm thermal sensor has and improved NETD rating of ≤18mK and is paired with a 25 mm f/1.0 lens to provide a 2x native magnification. New RL25 V2 models feature a machined magnesium alloy housing to reduce weight. An added USB-C port now allows for simplified file transfer and the ability to power the MICRO from an external battery pack. The internal video recorder now includes crisp audio and 64 GB of internal storage. An improved 1440×1080 AMOLED display and is paired with a new eyepiece that offers more comfortable viewing and clip-on compatibility for optics up to up to 6× magnification. The new display provides a physical viewing area that is 80% larger than the previous generation, with 97% more total pixels.
Please note the picture that has the case in it shows exactly what mounts and accessories come with this optic from the factory, some of the other pictures of this optic featured on firearms and helmets show it with alternate mounting solutions like the AC36 Pictail and AC52 MQD Mount, these can also be purchased separately from our website.
The new RL25 V2 can now be used as a thermal clip-on in front of day optics up to 6X.
(In the first generation, only the RH25 had a clip-on mode)
-
Optics
Display TypeAMOLED
Eye Relief45mm
Objective Focal Length25mm
Digital Magnification4X
Diopter Range-5 to +2
Vertical Angular Field of View7.9°
Horizontal Angular Field of View10.5
Focusing MechanismManual Focus
Objective F#1.0
Objective Diameter25mm
Objective Lens MaterialGermanium
Display Resolution1440×1080
Detection Range1375 Yards
Optical Magnification2X
-
Environmental Specifications
Operating Temperature Range-4°F~122°F
Recoil Rating1000 g/s² (300 Win./7mm Mag)
Ingress ProtectionIP67
-
Sensor Specifications
Sensor TypeInfiRay MICRO II
Sensor Pixel Size12μm
Thermal Sensitivity<18mk
Non-Uniformity Correction (NUC)Manual, Automatic, Semi-Automatic
Sensor Frame Rate60hz
Device TechnologyThermal Imaging
Sensor Resolution384×288
-
Features & Performance
Warranty5 Years
Startup Time<10 Seconds, Instant from Standby
Color PalettesWhite Hot, Black Hot, Red Hot, Color
Picture-in-PictureNo
Storage Capacity64GB
Connector OutputPower/Data
User-Updatable FirmwareYes
Mobile AppYes
Run Time6.5+
Power SourceUSB-C External, 18650 Battery
Stand-by ModeYes
Reticle7
Connector TypeUSB-C
External Power SourceUSB-C
Country of ManufactureChina
WifiYes
Onboard RecordingYes
Image CaptureYes
-
Physical
Housing MaterialMagnesium Alloy
Weight11.3 oz
Height1.88
Width2.55
Length4.52
Export of Thermal Imaging Equipment or related accessories (such as manuals) is strictly regulated by the US Department of State in accordance with the guidelines of the International Traffic in Arms Regulations (ITAR). It is a major crime to ship or carry US manufactured thermal imaging devices outside the borders of the United States, punishable by fines and prison sentences. Ignorance of these regulations will not hold up in court. By purchasing thermal imaging equipment from Thermal Optics Plus, you attest that you will not attempt to export or carry this thermal imaging equipment outside the borders of the United States. Also, it is illegal to allow a non-US Citizen to look through US Thermal Imaging Equipment, even on US soil. Again, this is a crime punishable by fines and prison sentences.
