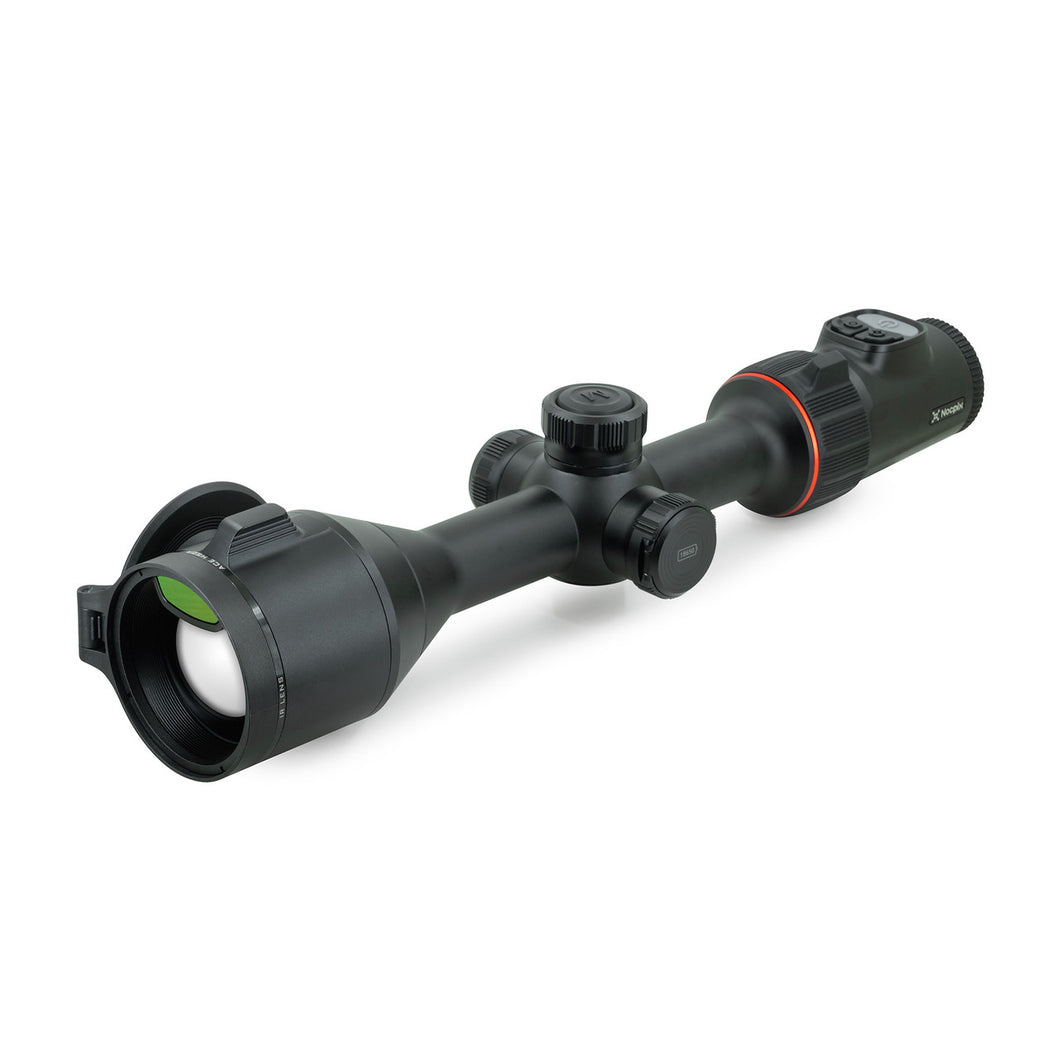

Nocpix ACE H50R Thermal Weapon Sight Oc. Magnifier 640x512 50mm
Regular price
$5,499.00
The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image. The 1,300-yard capable laser rangefinder on the ACE is integrated directly into the 50 mm germanium objective lens. In addition to streamlining the body design and reducing bulk, this allows for improved horizontal alignment of the infrared laser with the viewing system.
- Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.
- A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
- High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
- Simplified controls offer improved ergonomics and a better user experience in the field.
- Uses common 18650 style rechargeable batteries.
- A ballistic calculator function displays bullet drop values based on the laser rangefinder input data and a user-customized cartridge profile.
- Charge through the unit with a unique lock-out USB-C port design.
-
Optics
Objective Focal Length50mm
Detection Range2850 Yards
Digital Magnification8X
Optical Magnification3X
Objective Lens MaterialGermanium
Horizontal Angular Field of View8.8°
Vertical Angular Field of View7.7°
Objective Diameter50mm
Objective F#0.9
Focusing MechanismManual Focus
Eye Relief50mm
Diopter Range-5 to +5
Display TypeAMOLED
Display Resolution2560×2560
-
Environmental Specifications
Operating Temperature Range-4°F~122°F
Recoil Rating1000 g/s² (300 Win./7mm Mag)
Ingress ProtectionIP67
-
Sensor Specifications
Device TechnologyThermal Imaging
Sensor TypeNocpix 640
Sensor Resolution640×512
Sensor Pixel Size12μm
Sensor Frame Rate60hz
Thermal Sensitivity<15mk
Non-Uniformity Correction (NUC)Manual, Automatic, Semi-Automatic
-
Features & Performance
Color PalettesWhite Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
RangefinderIntegrated 1300 yd LRF
Picture-in-PictureYes
Connector OutputPower/Data
User-Updatable FirmwareYes
Mobile AppYes
One-Shot ZeroYes
Stand-by ModeYes
Connector TypeUSB-C
WifiYes
Onboard RecordingYes
Image CaptureYes
Video OutputYes
Storage Capacity64GB
Power SourceUSB-C External, 18650 Battery, Built-In Battery Pack
Run Time7+
Warranty5 Years
Startup Time<10 Seconds, Instant from Standby
External Power SourceUSB-C
Country of ManufactureChina
-
Physical
Length14.37
Width3.54
Height2.68
Weight39.5 oz
Housing MaterialT-6063 Aluminum
Export of Thermal Imaging Equipment or related accessories (such as manuals) is strictly regulated by the US Department of State in accordance with the guidelines of the International Traffic in Arms Regulations (ITAR). It is a major crime to ship or carry US manufactured thermal imaging devices outside the borders of the United States, punishable by fines and prison sentences. Ignorance of these regulations will not hold up in court. By purchasing thermal imaging equipment from Thermal Optics Plus, you attest that you will not attempt to export or carry this thermal imaging equipment outside the borders of the United States. Also, it illegal to allow a non-US Citizen to look through US Thermal Imaging Equipment, even on US soil. Again, this is a crime punishable by fines and prison sentences.
