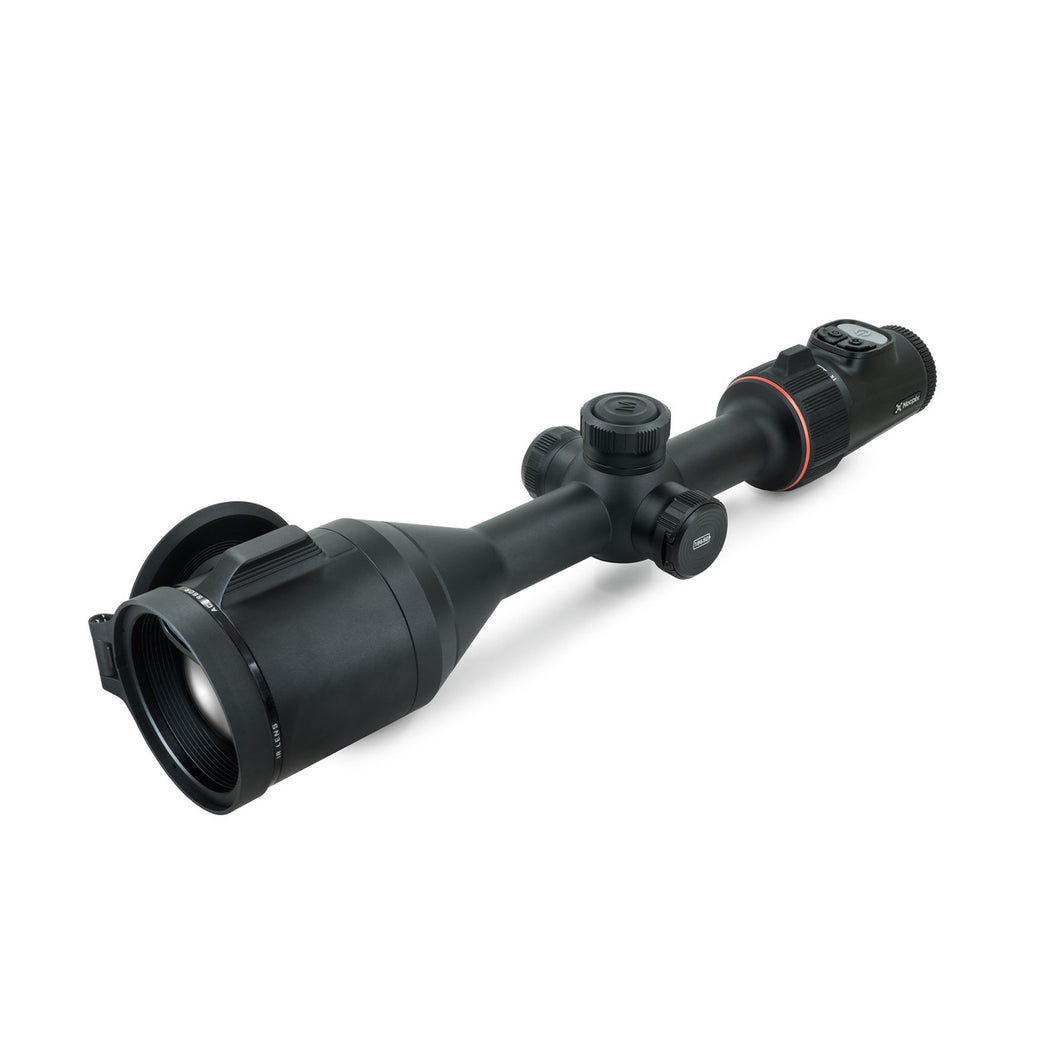

Nocpix ACE S60R Thermal Weapon Sight Oc. Magnifier 1280x1024 60mm

Nocpix ACE S60R Thermal Weapon Sight Oc. Magnifier 1280x1024 60mm

$6,999.00 Sale

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a ≤15 mK NETD sensor for an incredibly detailed and precise image. The 1,300-yard capable laser rangefinder on the ACE is integrated directly into the 50 mm germanium objective lens. In addition to streamlining the body design and reducing bulk, this allows for improved horizontal alignment of the infrared laser with the viewing system.

New for 2025, the ACE S60R brings the best-available thermal sensor resolution (1280x1024) to the most versatile thermal weapon sight platform on the market. With a 2x native (base) magnification, a12x digital zoom and a 1-3x Optical Magnifier, the magnification range delivers fantastic image quality at all ranges.

  • Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.
  • A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
  • High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
  • Simplified controls offer improved ergonomics and a better user experience in the field.
  • Uses common 18650 style rechargeable batteries.
  • A ballistic calculator function displays bullet drop values based on the laser rangefinder input data and a user-customized cartridge profile.
  • Charge through the unit with a unique lock-out USB-C port design.

The H50R comes with a 30 mm one-piece quick-detach scope mount with dual-locking levers to mount the scope on any rifle with a Picatinny rail. The QD design makes it easy to swap out your thermal optic with a day scope, or share one thermal on multiple rifles.

  • Optics

    Display Type

    AMOLED

    Eye Relief

    50mm

    Objective Focal Length

    60mm

    Digital Magnification

    12X

    Diopter Range

    -5 to +5

    Vertical Angular Field of View

    11.7°

    Horizontal Angular Field of View

    14.7°

    Focusing Mechanism

    Manual Focus

    Objective F#

    1.0

    Objective Diameter

    60mm

    Objective Lens Material

    Germanium

    Display Resolution

    2560×2560

    Detection Range

    3400 Yards

    Optical Magnification

    2X

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

    Ingress Protection

    IP67

  • Sensor Specifications

    Sensor Type

    Nocpix 1280

    Sensor Pixel Size

    12μm

    Thermal Sensitivity

    <15mk

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic

    Sensor Frame Rate

    50hz

    Device Technology

    Thermal Imaging

    Sensor Resolution

    1280×1024

  • Features & Performance

    Warranty

    5 Years

    Startup Time

    <10 Seconds, Instant from Standby

    Rangefinder

    Integrated 1300 yd LRF

    Color Palettes

    White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

    Picture-in-Picture

    Yes

    Storage Capacity

    64GB

    Connector Output

    Power/Data

    User-Updatable Firmware

    Yes

    Mobile App

    Yes

    Run Time

    6+

    Power Source

    USB-C External, 18650 Battery, Built-In Battery Pack

    One-Shot Zero

    Yes

    Stand-by Mode

    Yes

    Connector Type

    USB-C

    External Power Source

    USB-C

    Country of Manufacture

    China

    Wifi

    Yes

    Onboard Recording

    Yes

    Image Capture

    Yes

    Video Output

    Yes

  • Physical

    Mounting Interface

    QD Picatinny

    Housing Material

    Aluminum Alloy

    Weight

    45.9 oz

    Height

    2.76

    Width

    3.54

    Length

    15.35

Export of Thermal Imaging Equipment or related accessories (such as manuals) is strictly regulated by the US Department of State in accordance with the guidelines of the International Traffic in Arms Regulations (ITAR).  It is a major crime to ship or carry US manufactured thermal imaging devices outside the borders of the United States, punishable by fines and prison sentences.  Ignorance of these regulations will not hold up in court.  By purchasing thermal imaging equipment from Thermal Optics Plus, you attest that you will not attempt to export or carry this thermal imaging equipment outside the borders of the United States.  Also, it illegal to allow a non-US Citizen to look through US Thermal Imaging Equipment, even on US soil.  Again, this is a crime punishable by fines and prison sentences.
