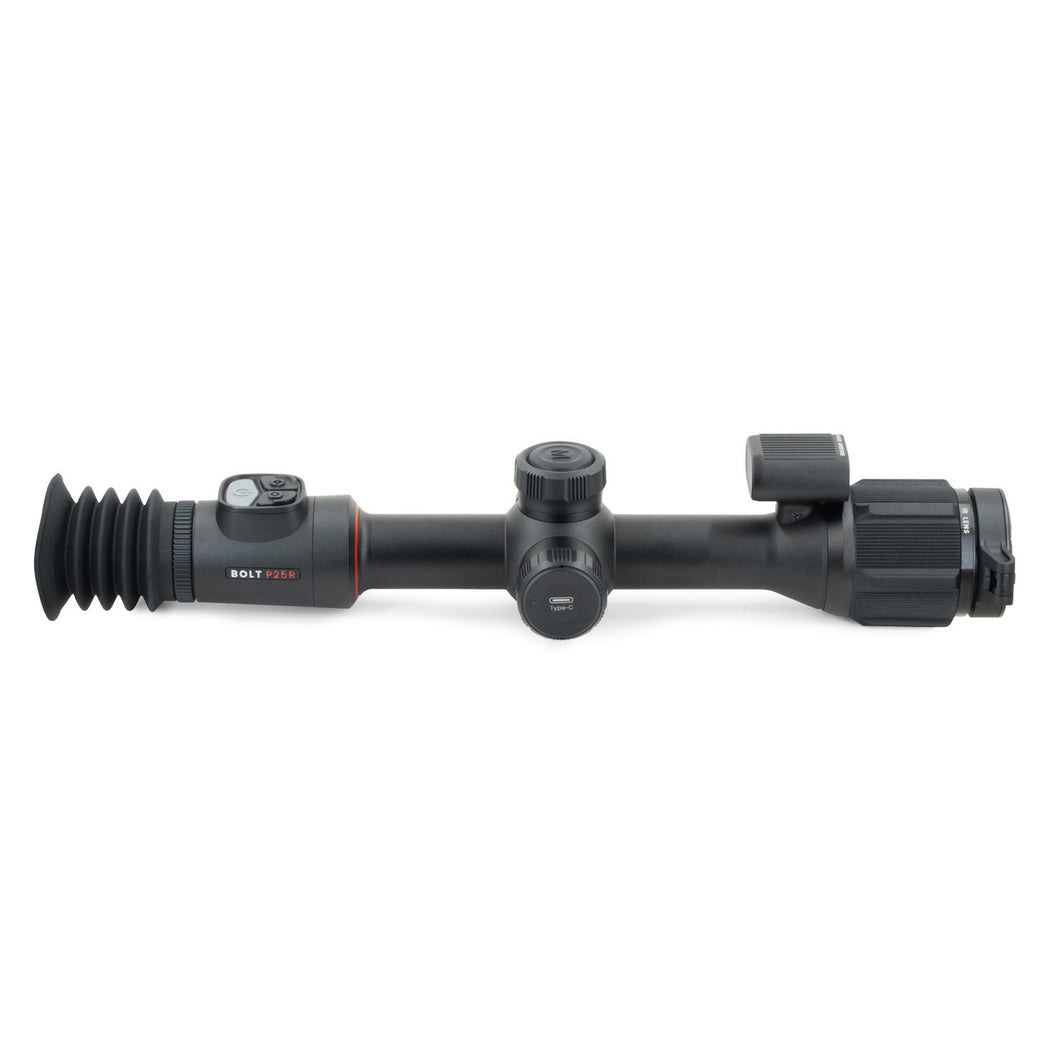

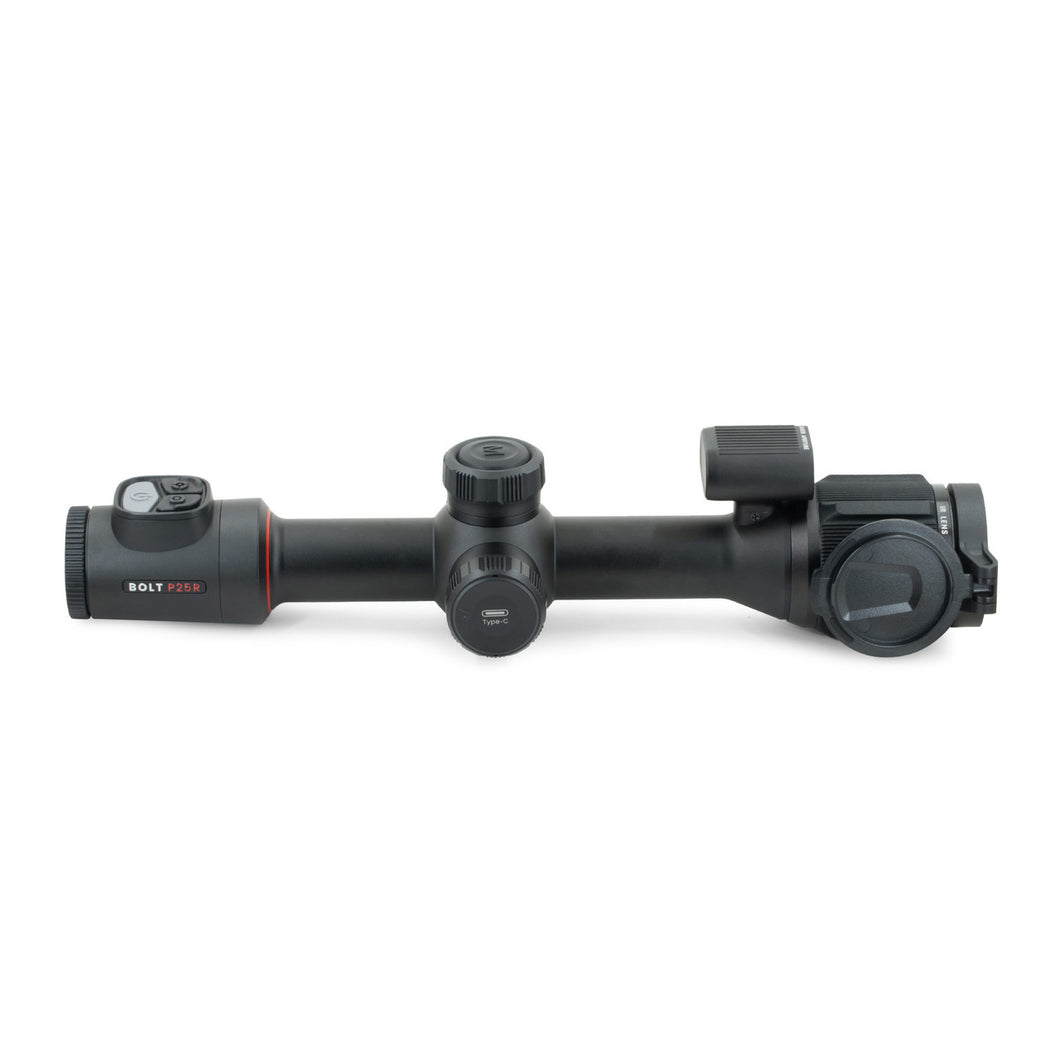

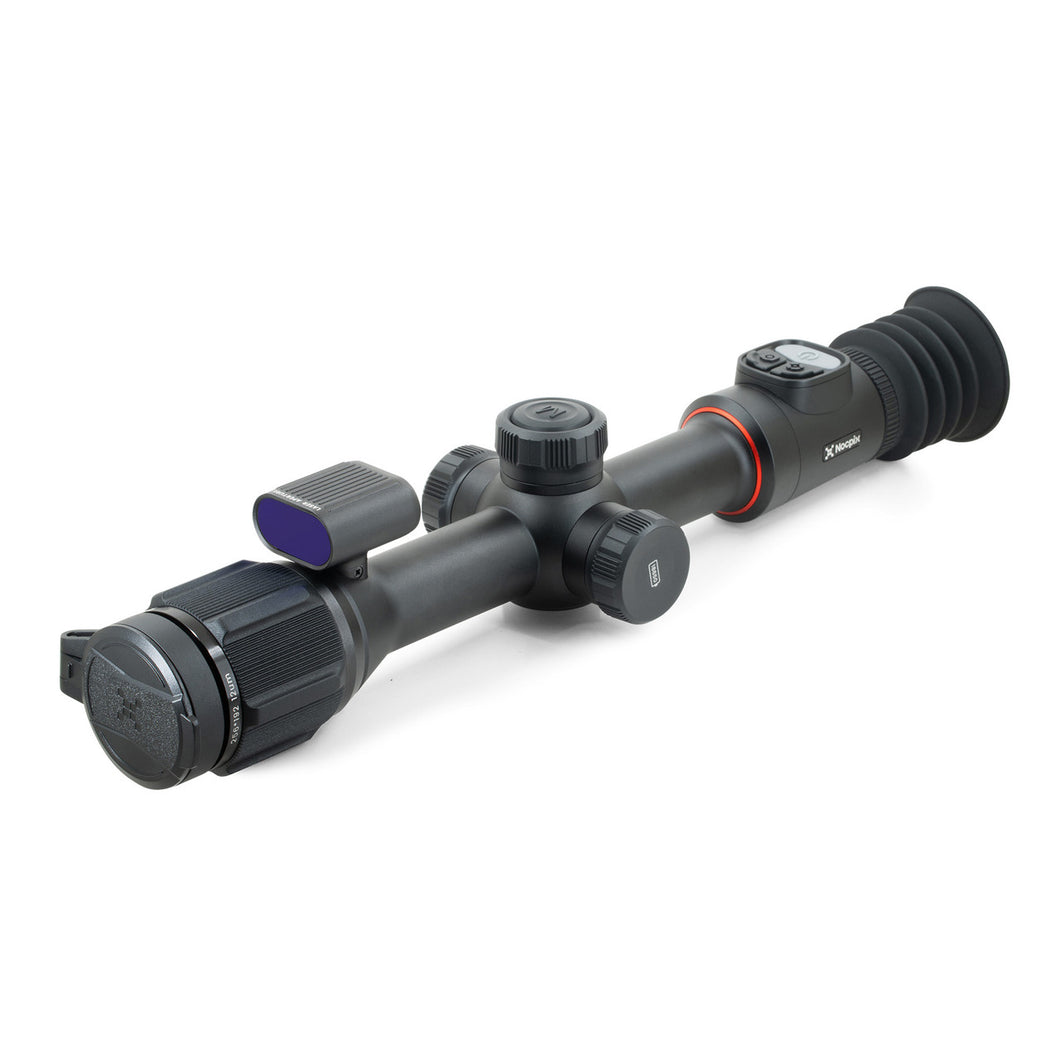

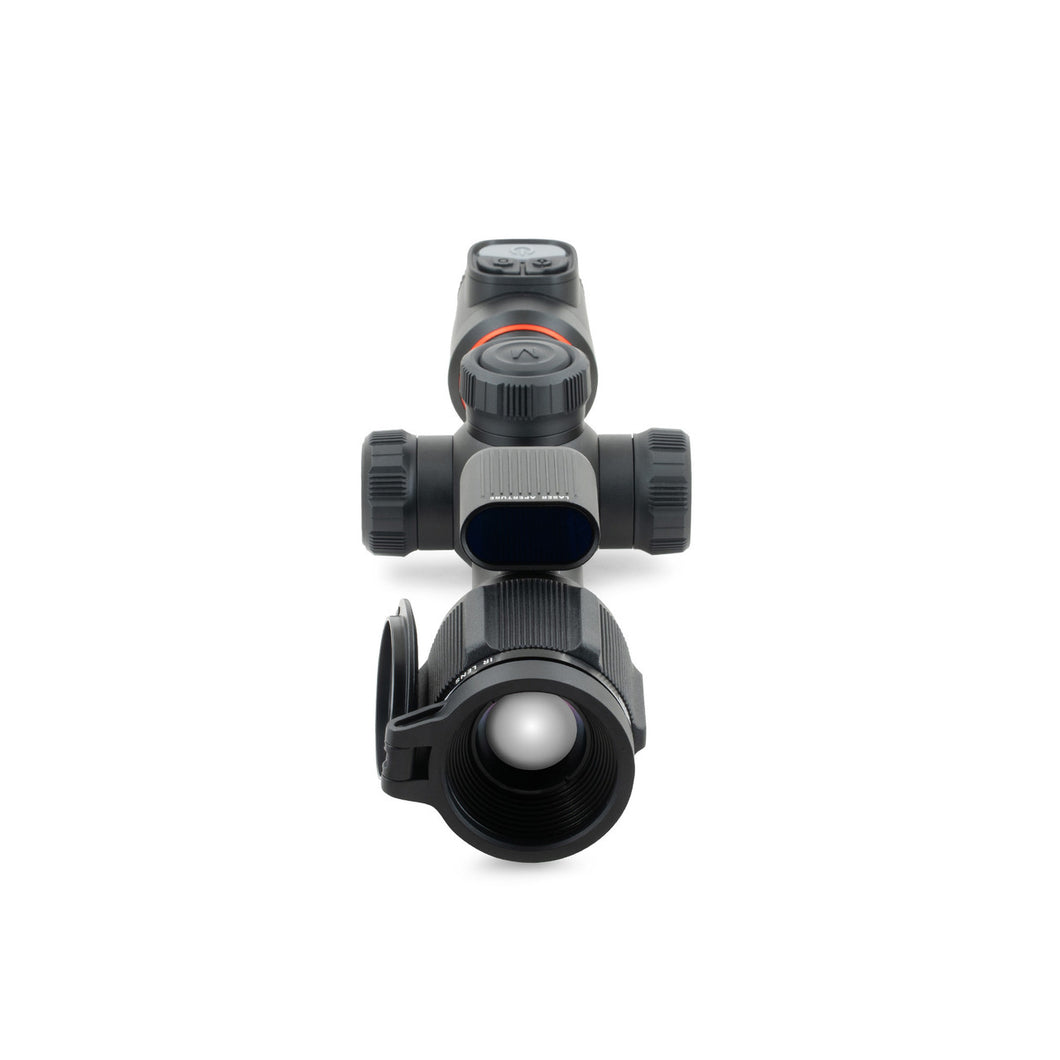

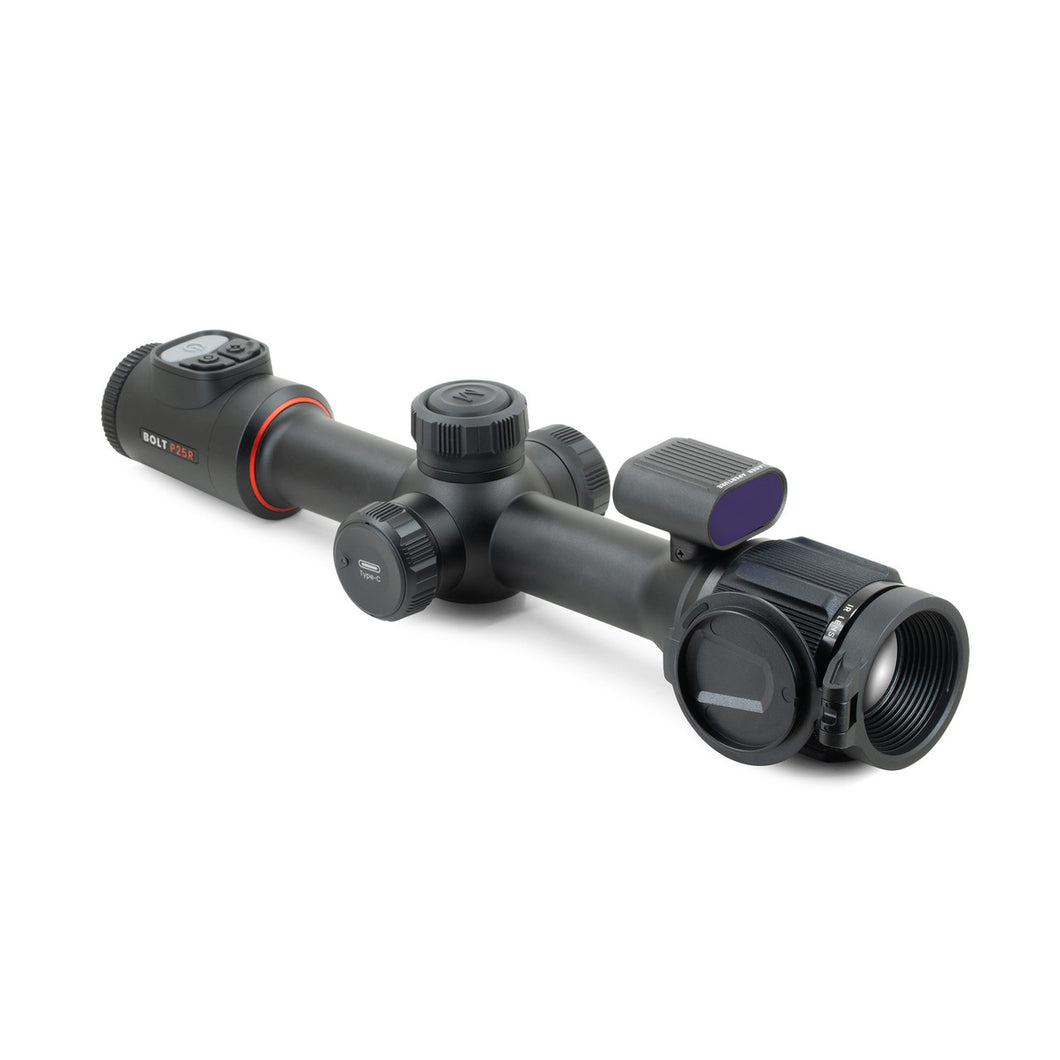

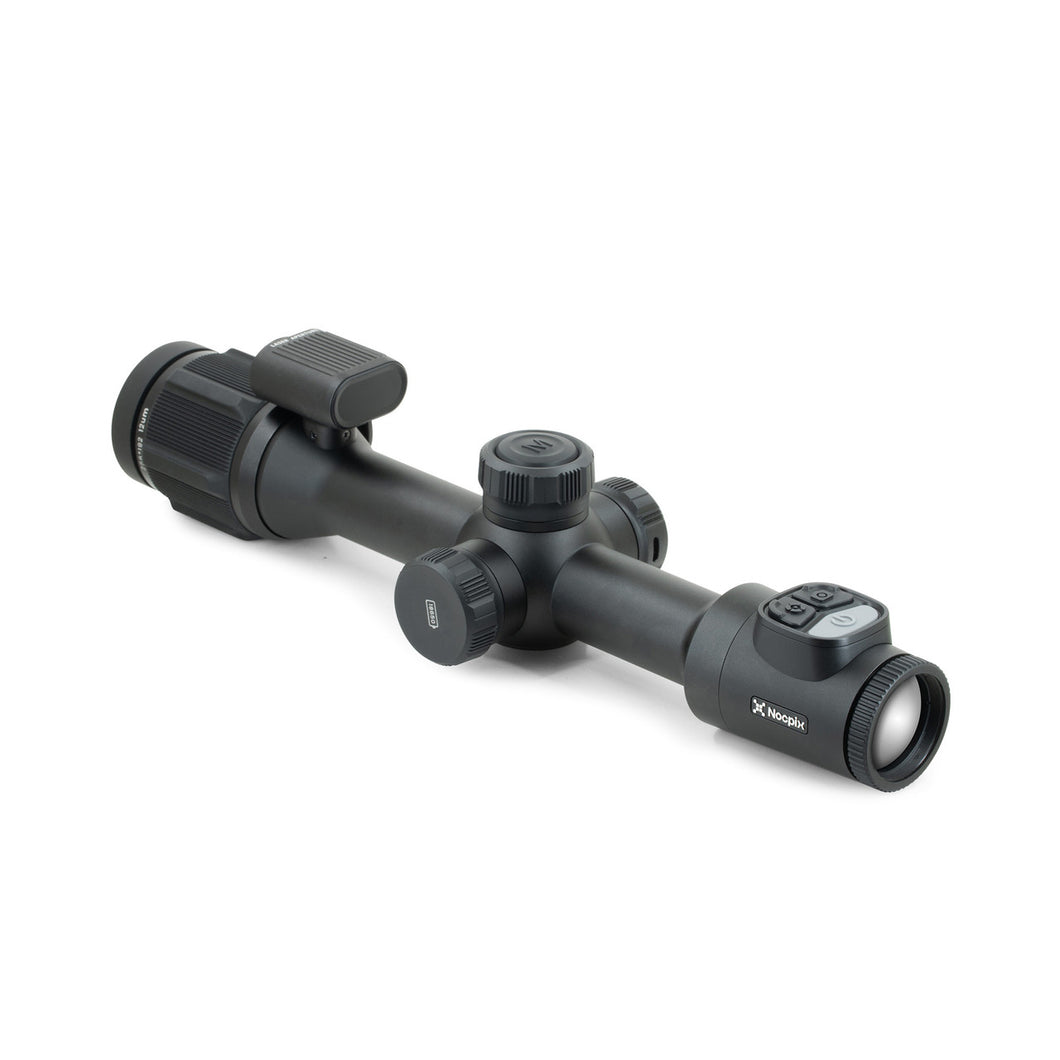

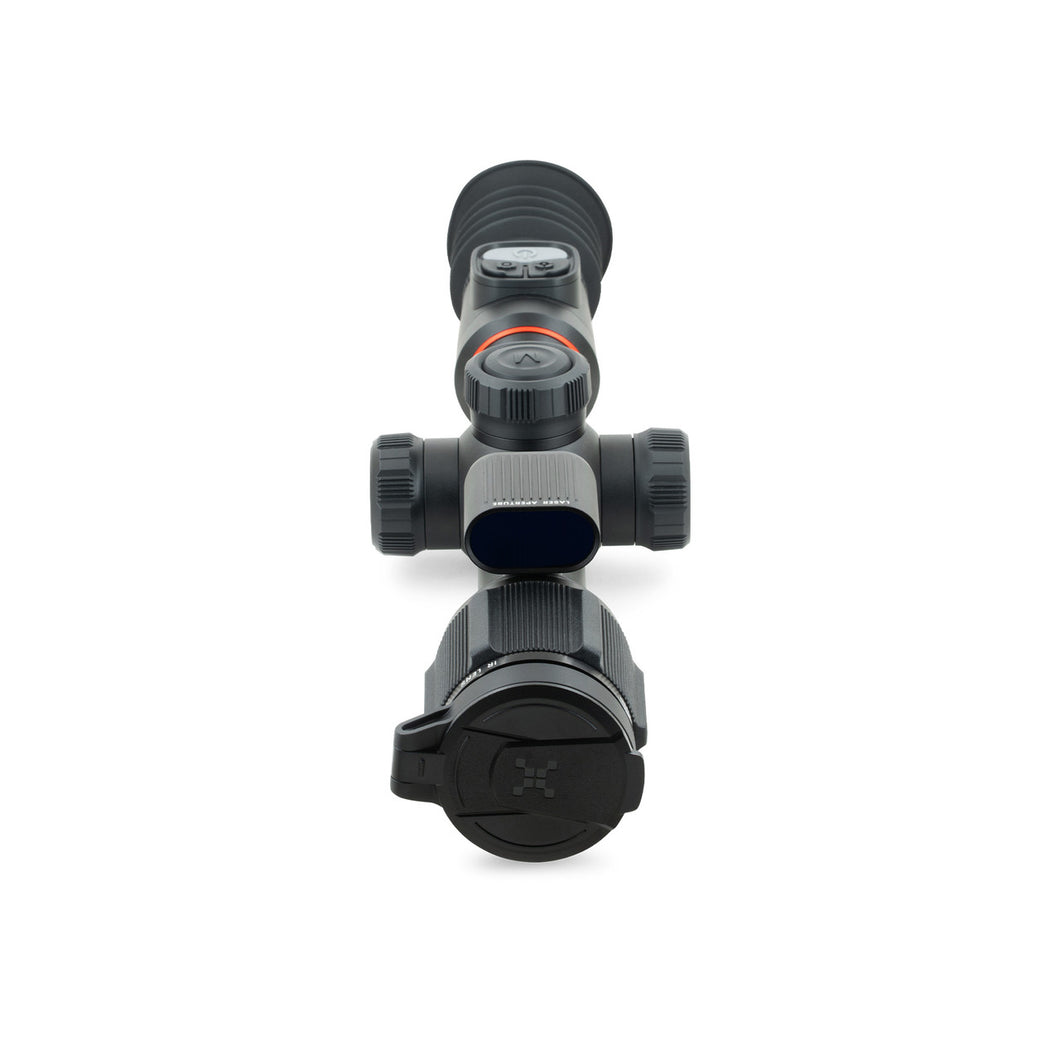

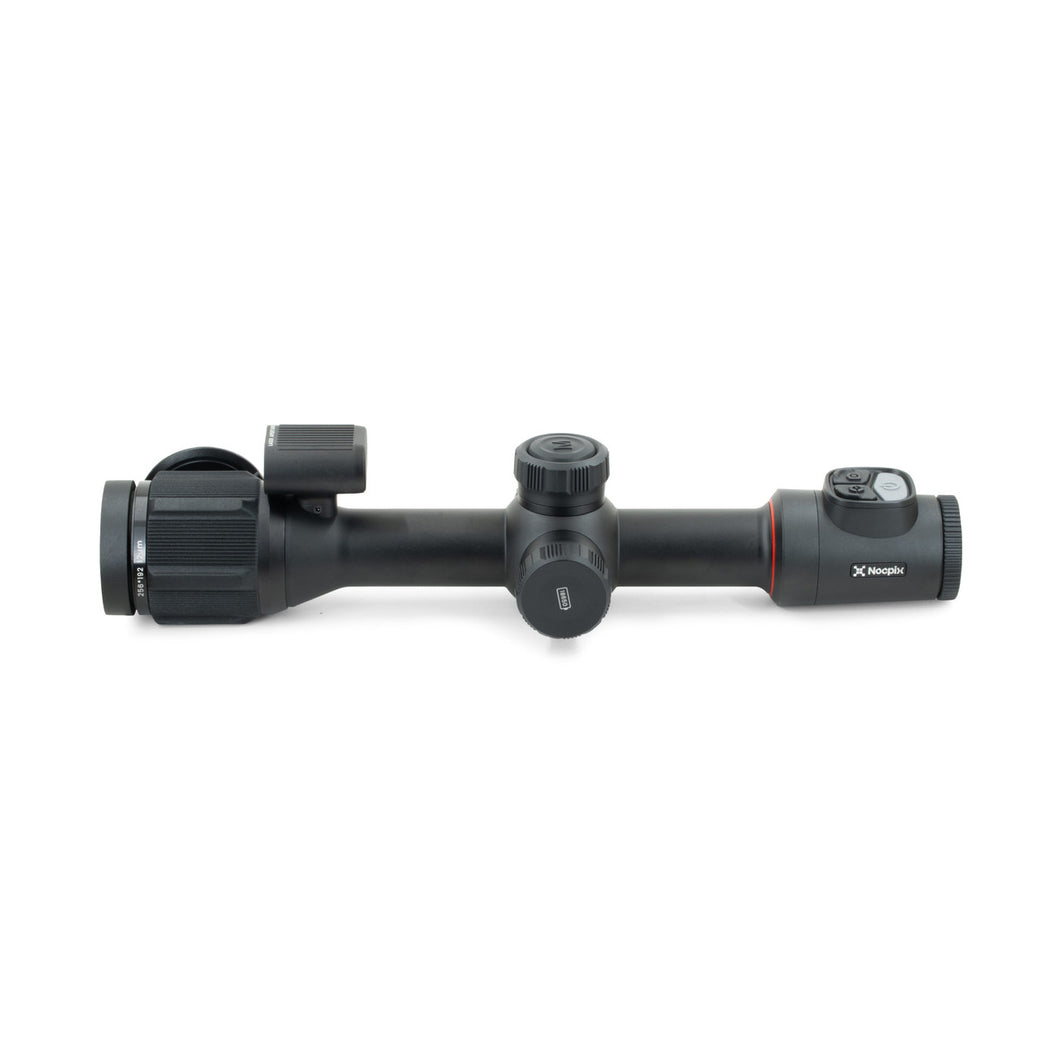

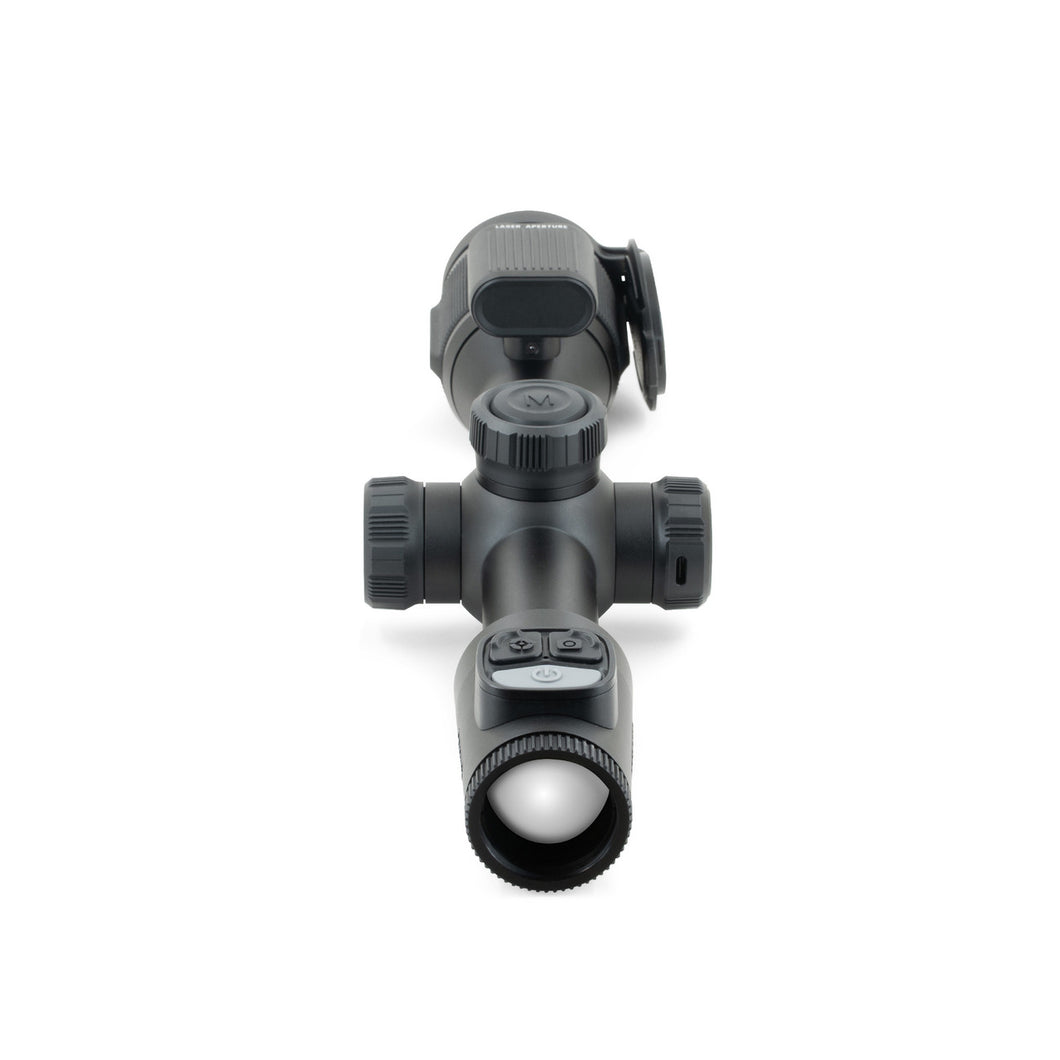

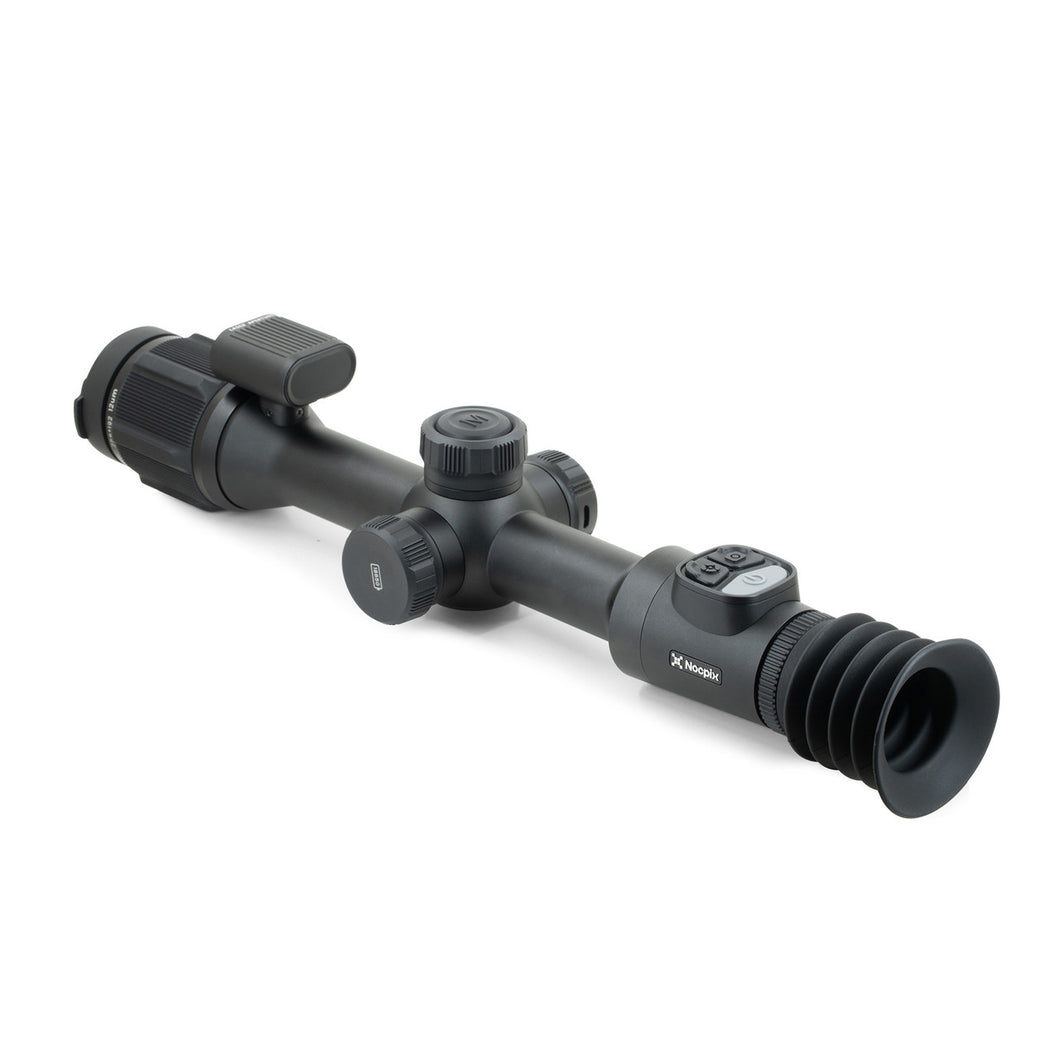

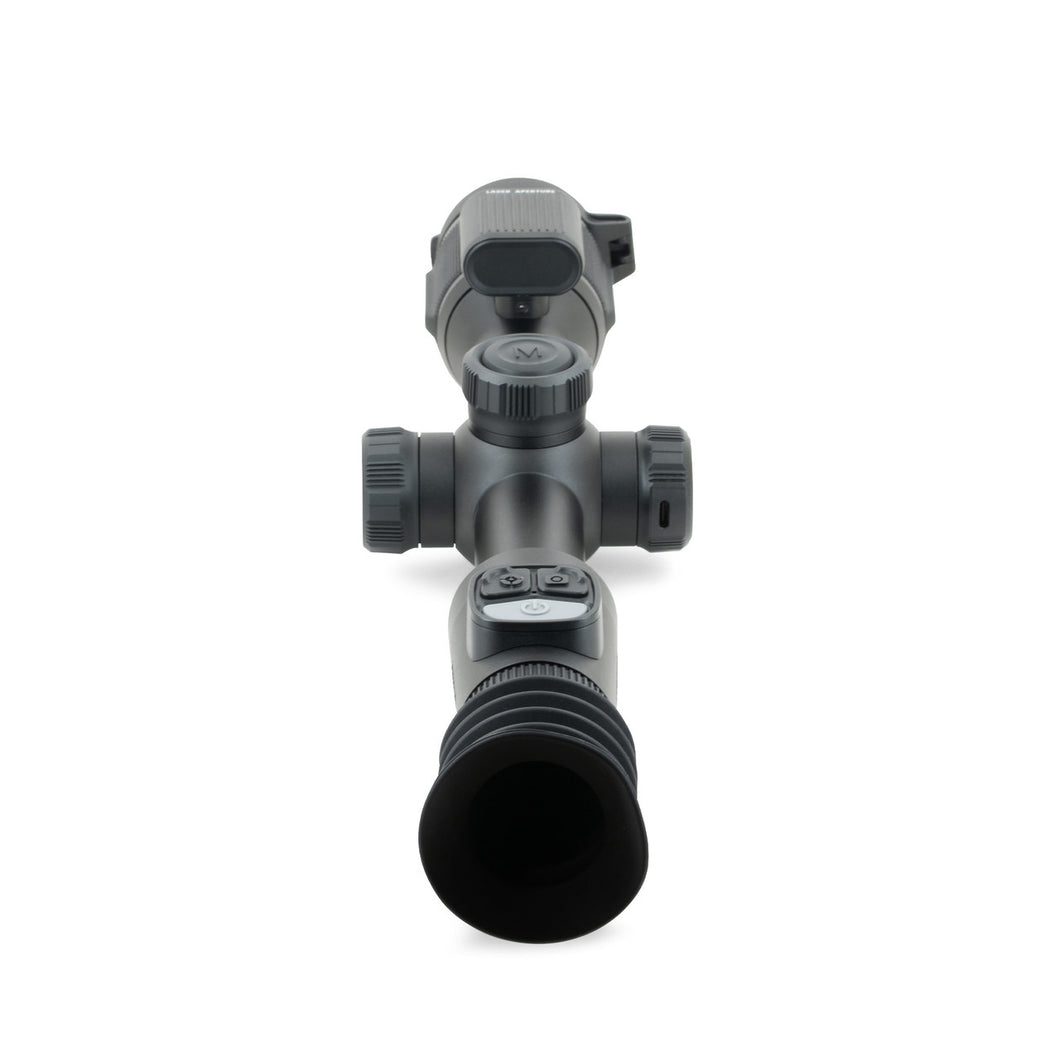

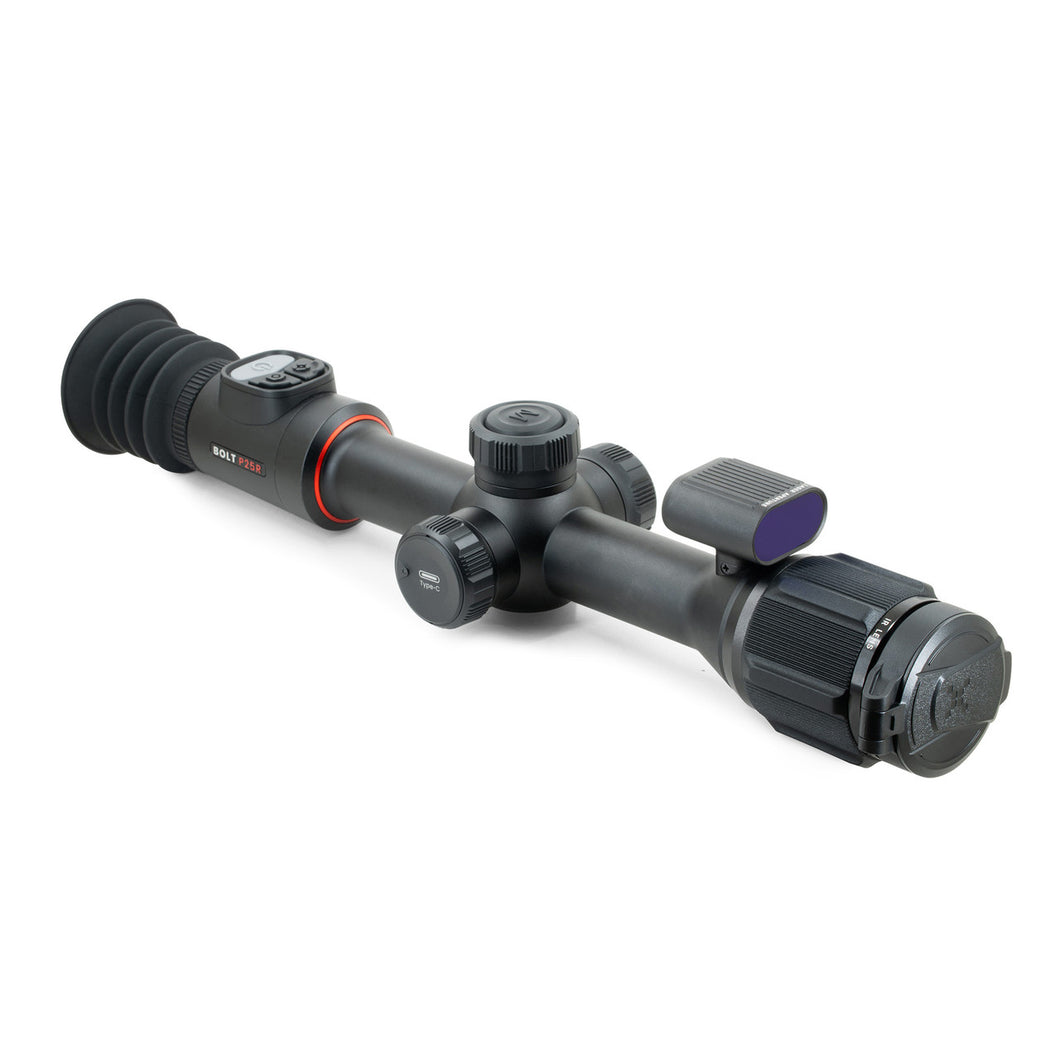

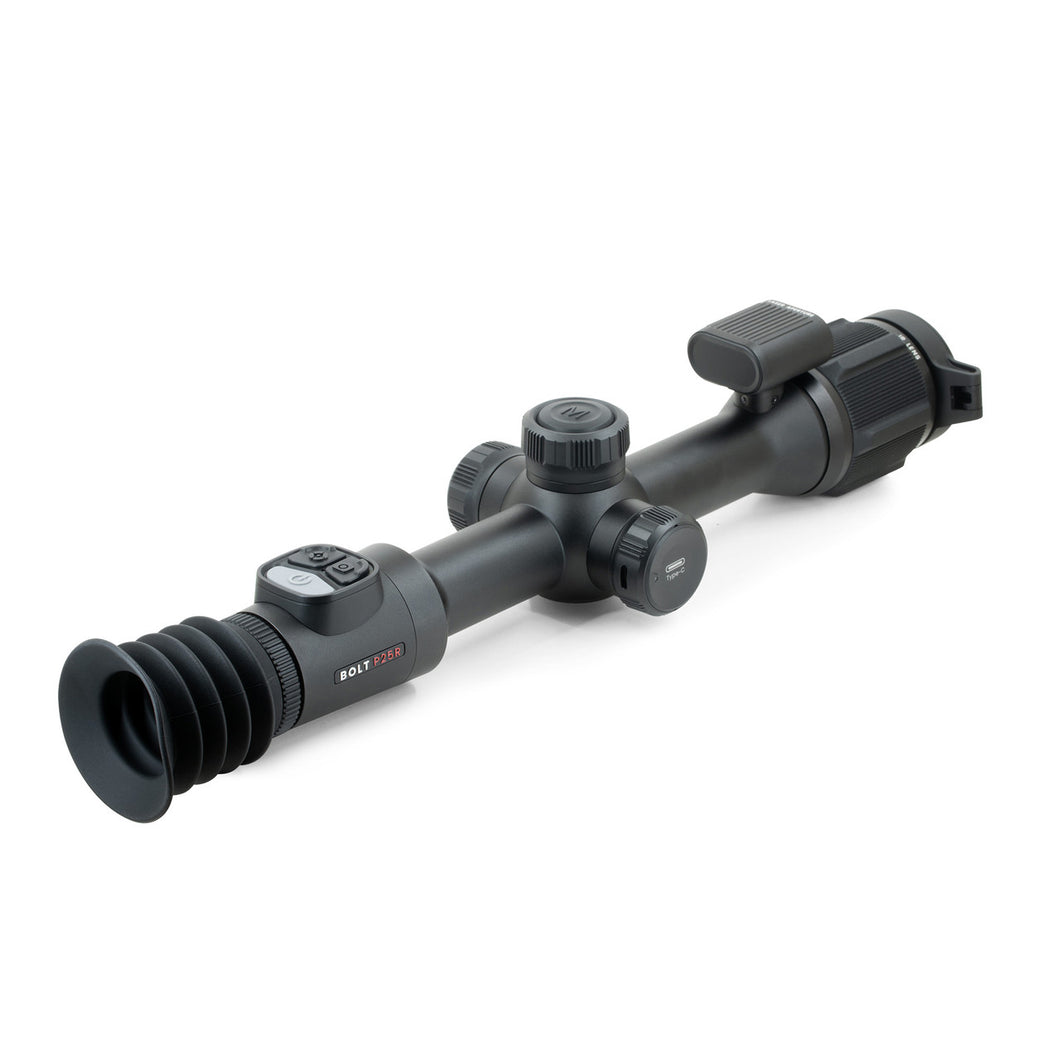

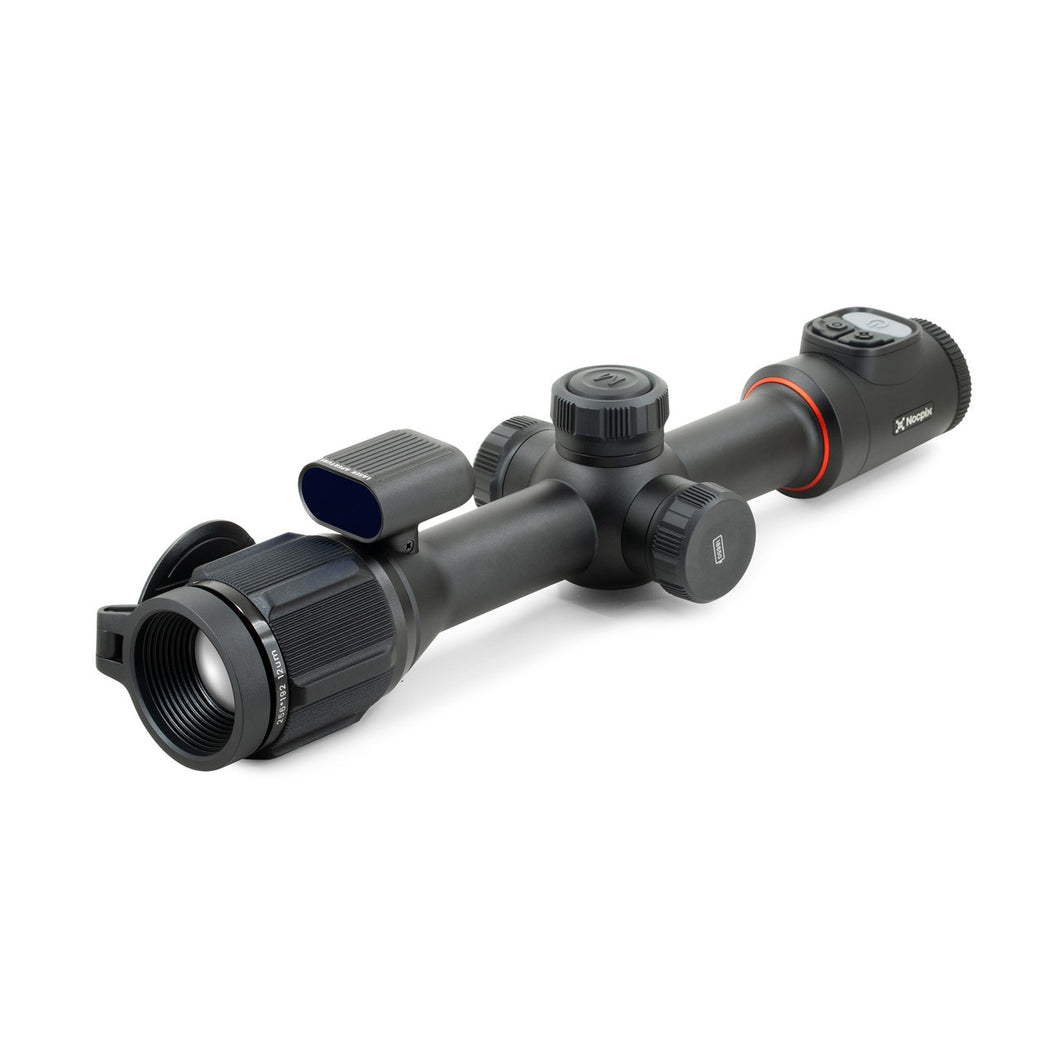

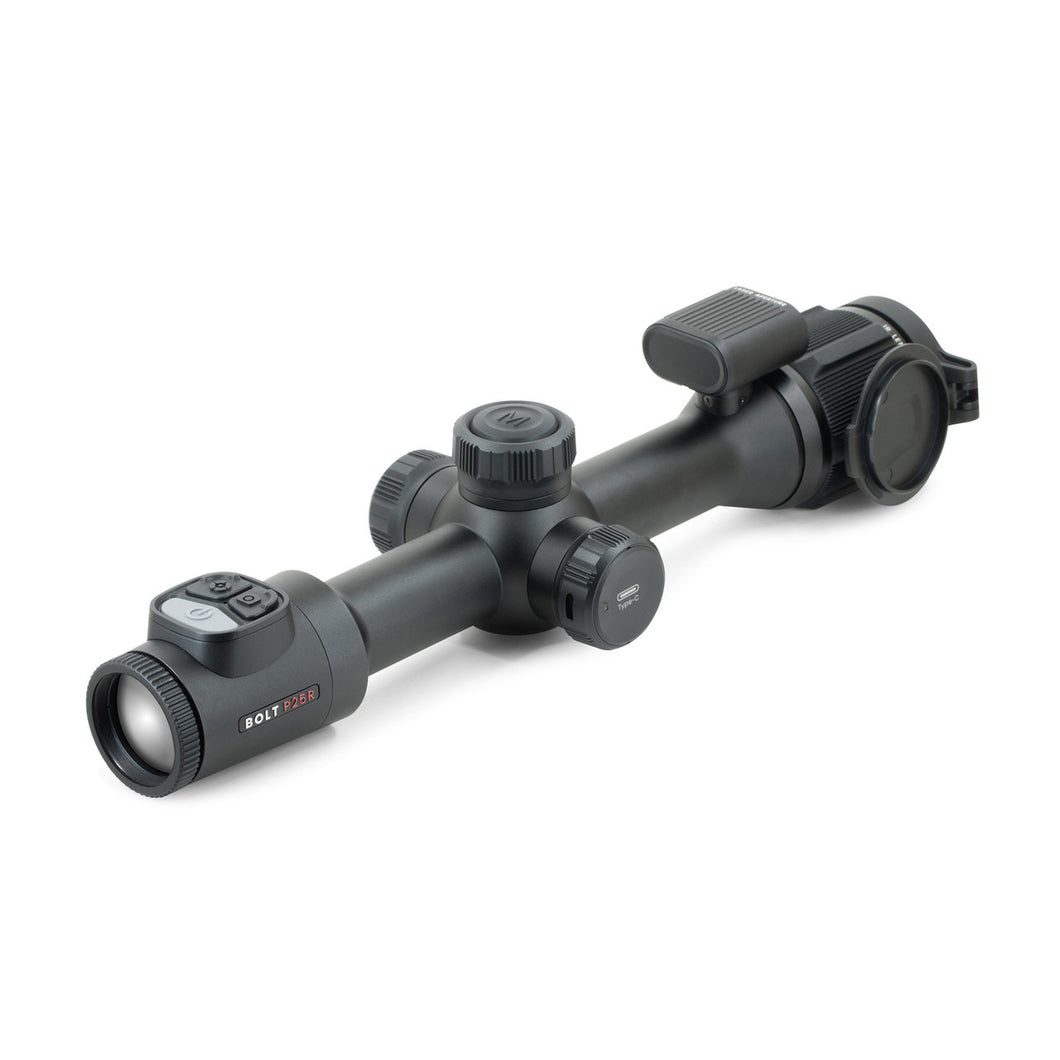

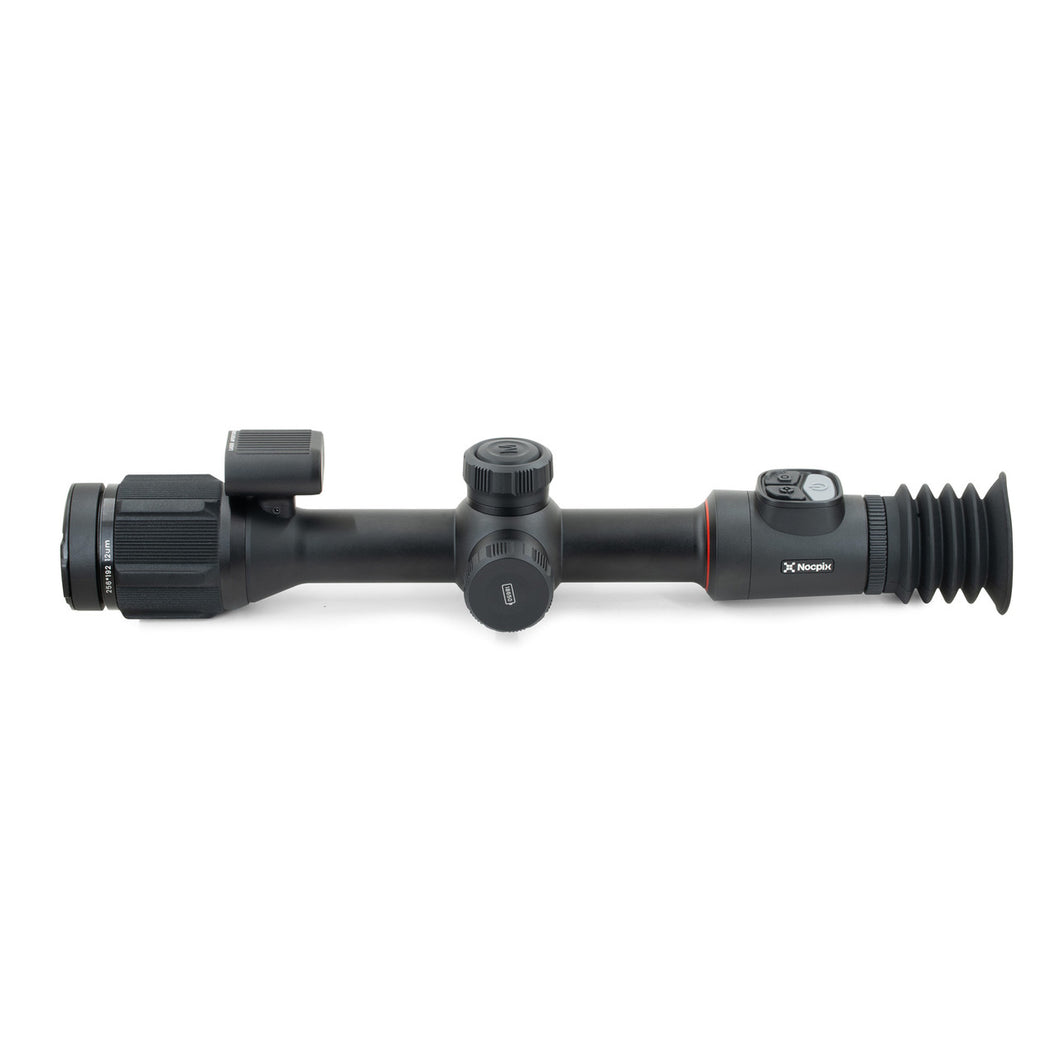

New for 2025, the BOLT line brings Nocpix thermal performance into an affordable weapon sight platform. Available in two models, the L35 (384×288) and P25 (256×192), both optics feature an integrated laser rangefinder and ballistic calculator, providing long-range precision without breaking the budget. Built for the field, the BOLT combines an internal rechargeable battery with a removable hot-swappable 18650 auxiliary battery for extended run time. Designed to mount like a traditional day optic, it is compatible with standard 30 mm rings and mounts (not included), making it equally at home on bolt-action and semiautomatic rifles. While not as feature-rich as the ACE series, the BOLT models deliver reliable thermal imaging, intuitive controls, and rugged construction in a streamlined package. For the first time, Nocpix offers a budget-friendly option with a built-in rangefinder, making the BOLT line a tremendous value for shooters looking to step into thermal without compromise on critical capabilities.
-
Focusing Mechanism
Manual Focus
Display Resolution
1024×768
Vertical Angular Field of View
5.3°
Horizontal Angular Field of View
7.5°
Horizontal Angular Field of View
7.0°
Objective Lens Material
Germanium
Optical Magnification
3.5X
Objective Focal Length
25 mm
-
Startup Time
<10 Seconds, Instant from Standby
Rangefinder
Integrated 1300 yd LRF
Color Palettes
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Connector Output
Power/Data
Power Source
USB-C External, 18650 Battery, Built-In Battery Pack
User-Updatable Firmware
Yes
Country of Manufacture
China
Reticle
8 (7 Static, 1 DIY)
External Power Source
USB-C
-
Operating Temperature Range
-4°F~122°F
Recoil Rating
1000 g/s² (300 Win./7mm Mag)
-
Housing Material
T-6063 Aluminum
-
Thermal Sensitivity
≤20 mk
Non-Uniformity Correction (NUC)
Manual, Automatic, Semi-Automatic
Sensor Resolution
256x192
Device Technology
Thermal Imaging
