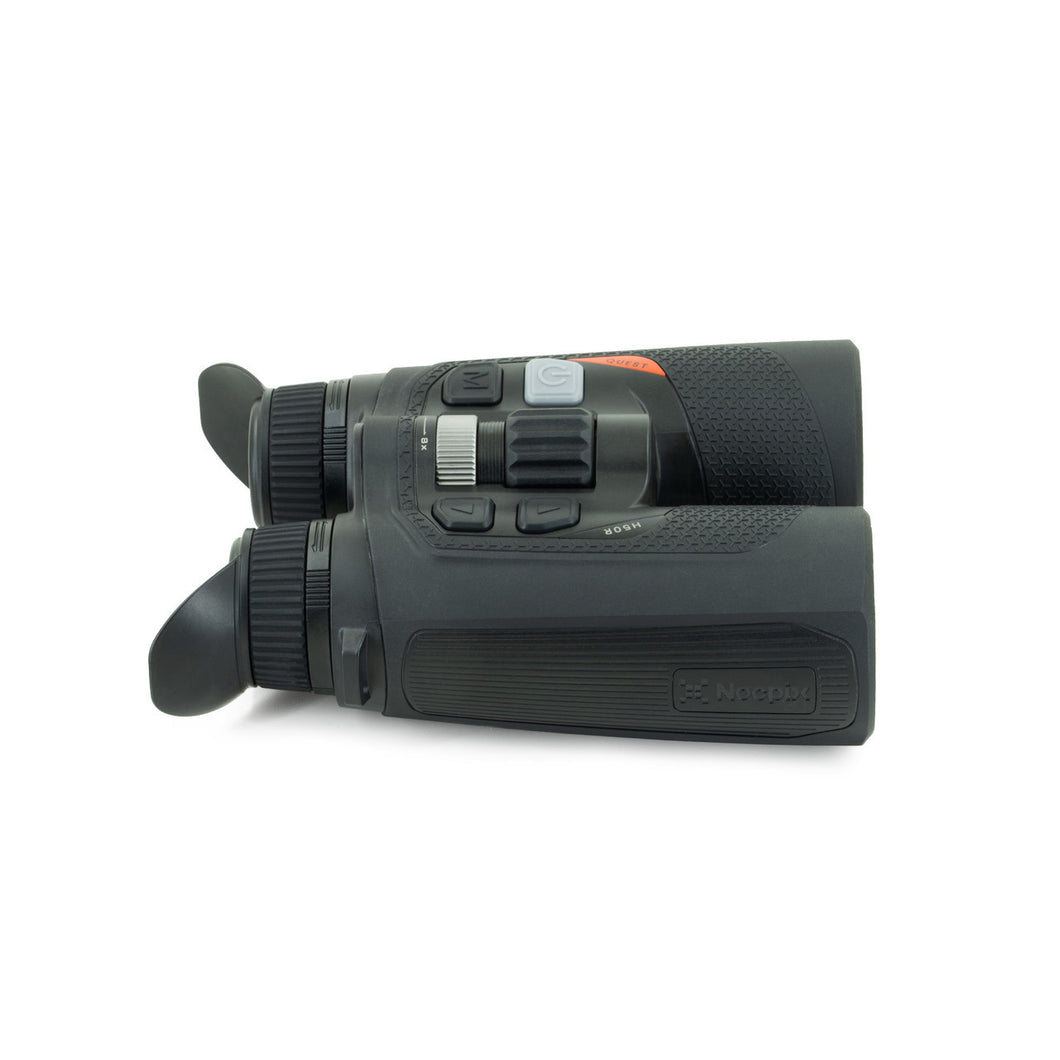

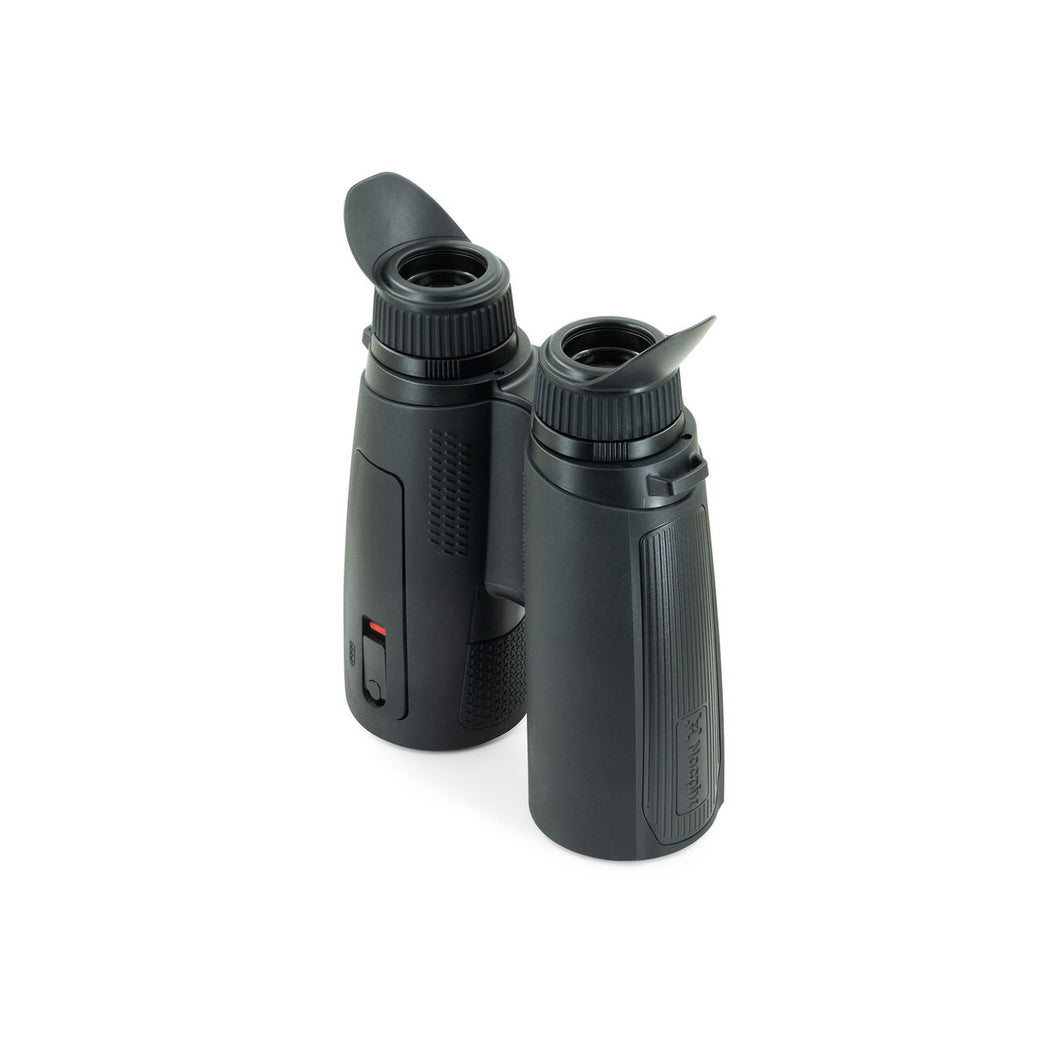

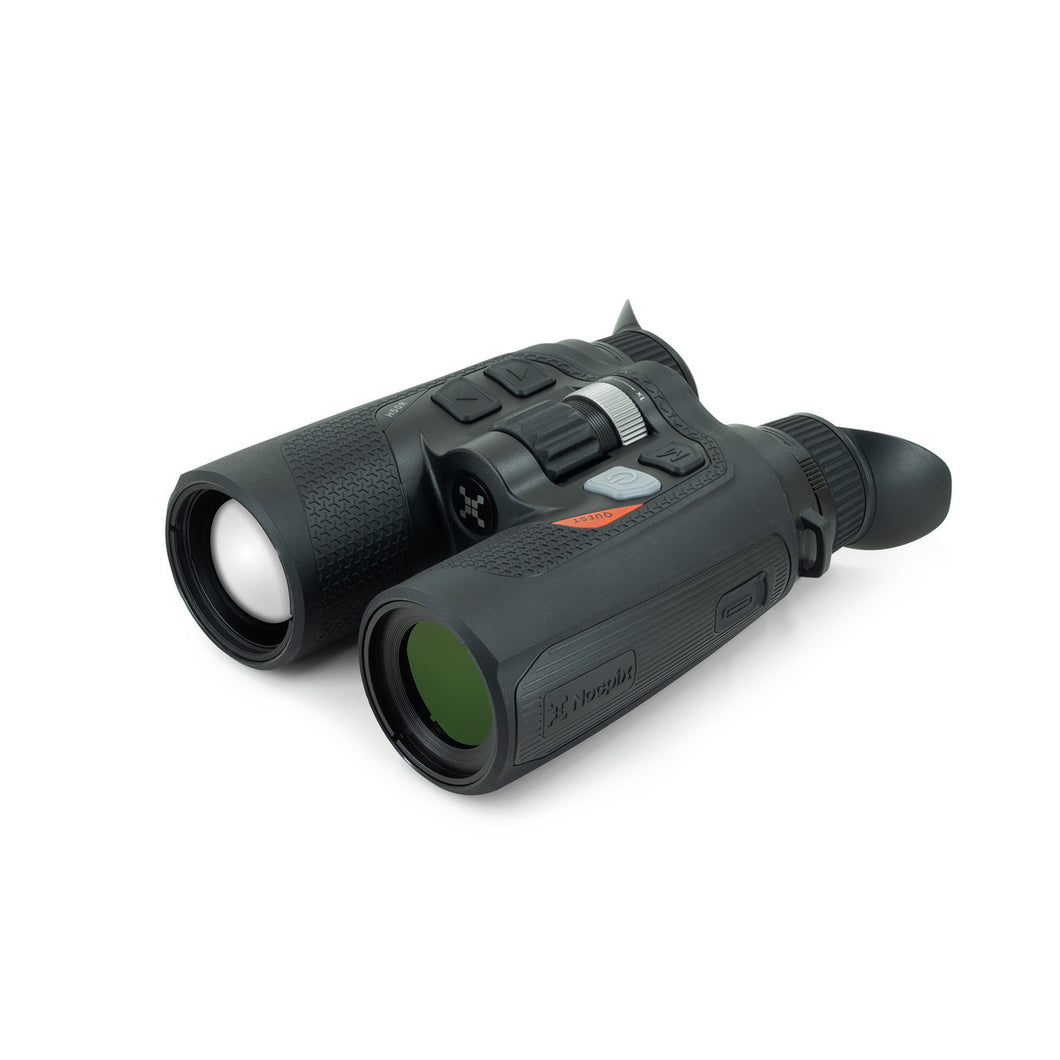

Nocpix QUEST H50R Rangefinding Thermal Binocular 640x512 50mm

All new for 2025, QUEST binoculars deliver a comfortable and intuitive viewing experience. Unlike thermal monoculars, the QUEST binoculars allow users to use both hands and both eyes while scanning - providing a smooth and comfortable feel, just like traditional daylight binoculars. A 12 μm ≤15mK 640×512 thermal sensor captures every detail, while the Reality+ image processing algorithm delivers a vivid picture to the 1920x1200 displays (full resolution per each eyepiece). Each display has a dedicated diopter and position adjustment.

QUEST binoculars also include an easy-to-use 1,000 yard laser rangefinder that can run in either single-firing or continuous modes to show target distance on the display. The combination of an internal USB-C rechargeable battery and an auxiliary IRB-2 (18650 style) rechargeable battery allows users to hot-swap the power source and keep running all night long. The QUEST is available with a 50 mm objective lens (model H50R) or a 35 mm germanium objective lens (H35R). Each comes with everything you would expect from high-end binoculars, including a comfortable and fully adjustable binocular harness.

• Optics

  Objective Focal Length

  50mm

  Detection Range

  2850 Yards

  Optical Magnification

  4X

  Digital Magnification

  8X

  Objective Lens Material

  Germanium

  Horizontal Angular Field of View

  8.8°

  Vertical Angular Field of View

  7°

  Objective Diameter

  50mm

  Objective F#

  1.1

  Focusing Mechanism

  Manual Focus

  Eye Relief

  25mm

  Diopter Range

  -5 to +5

  Display Type

  AMOLED

  Display Resolution

  1920x1200

• Environmental Specifications

  Operating Temperature Range

  -4°F~122°F

  Ingress Protection

  IP67

• Sensor Specifications

  Sensor Type

  Nocpix 640

  Device Technology

  Thermal Imaging

  Sensor Resolution

  640×512

  Sensor Pixel Size

  12μm

  Thermal Sensitivity

  <15mk

  Non-Uniformity Correction (NUC)

  Manual, Automatic, Semi-Automatic

  Sensor Frame Rate

  60hz

• Features & Performance

  Color Palettes

  White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

  Rangefinder

  Integrated 1000 yd LRF

  Stand-by Mode

  Yes

  Picture-in-Picture

  Yes

  Storage Capacity

  64GB

  Connector Output

  Power/Data

  User-Updatable Firmware

  Yes

  Mobile App

  Yes

  Power Source

  USB-C External, 18650 Battery, Built-In Battery Pack

  Connector Type

  USB-C

  Wifi

  Yes

  Onboard Recording

  Yes

  Image Capture

  Yes

  Video Output

  Yes

  Run Time

  5+

  Warranty

  5 Years

  Startup Time

  <10 Seconds, Instant from Standby

  External Power Source

  USB-C

  Country of Manufacture

  China

• Physical

  Length

  6.91

  Width

  5.43

  Height

  2.60

  Weight

  24.69

  Housing Material

  Polymer

Export of Thermal Imaging Equipment or related accessories (such as manuals) is strictly regulated by the US Department of State in accordance with the guidelines of the International Traffic in Arms Regulations (ITAR).  It is a major crime to ship or carry US manufactured thermal imaging devices outside the borders of the United States, punishable by fines and prison sentences.  Ignorance of these regulations will not hold up in court.  By purchasing thermal imaging equipment from Thermal Optics Plus, you attest that you will not attempt to export or carry this thermal imaging equipment outside the borders of the United States.  Also, it is illegal to allow a non-US Citizen to look through US Thermal Imaging Equipment, even on US soil.  Again, this is a crime punishable by fines and prison sentences.
