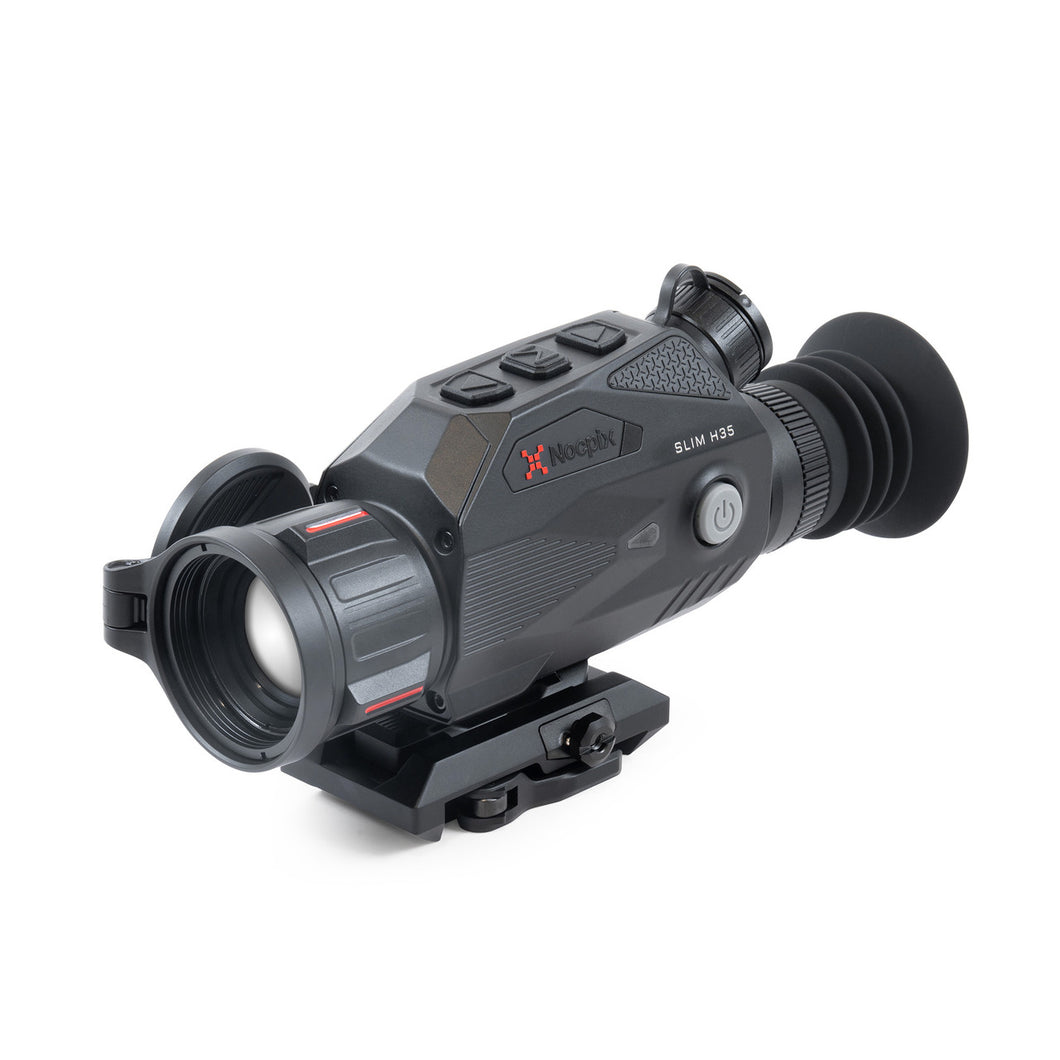

Nocpix SLIM H35 Multi-function Thermal Optic 640x512 35mm

The new SLIM series from Nocpix provides the best value and features in a compact optic. Focused on versatility and ease of use, SLIM models can be used as either a handheld monocular or a weapon sight. With the included proprietary quick-detach mounting system a hunter can quickly scan and then re-attach the optic to the rifle while maintaining zero. A magnesium alloy body and quiet, soft-touch buttons provide excellent ergonomics in both handheld and weapon-mounted configurations. The included IRB-2 batteries (flay-top 18650 style cell) are easy to swap–letting you stay out longer with the ability to charge through the optic using a magnetic cable. Generous eye relief and a 1024×768 AMOLED display provide a comfortable and highly detailed viewing and hunting experience.

• Ambidextrous one-handed design for easy use as a handheld monocular or weapon sight.
• Recoil-activated video automatically records footage before and after a shot.
• High-contrast 1024×768 AMOLED display provides increased clarity and detail.
• Quick-release dual-throw mount with a magnetic alignment aid provide fast and secure return-to-zero (1-MOA) weapon mounting.
• Uses common 18650 style rechargeable batteries.
• Available in high and standard-resolution models.
• Quick, secure charging via the magnetic charging port.

• Optics

  Objective Focal Length

  35mm

  Display Type

  AMOLED

  Eye Relief

  48mm

  Digital Magnification

  4x

  Diopter Range

  -5 to +5

  Vertical Angular Field of View

  9.4°

  Horizontal Angular Field of View

  12.5°

  Focusing Mechanism

  Manual Focus

  Objective F#

  1.0

  Objective Diameter

  35mm

  Objective Lens Material

  Germanium

  Display Resolution

  1024×768

  Detection Range

  1750 Yards

  Optical Magnification

  2X

• Environmental Specifications

  Operating Temperature Range

  -4°F~122°F

  Recoil Rating

  1000 g/s² (300 Win./7mm Mag)

  Ingress Protection

  IP67

• Sensor Specifications

  Device Technology

  Thermal Imaging

  Sensor Type

  Nocpix 640

  Sensor Pixel Size

  12μm

  Thermal Sensitivity

  <18mk

  Non-Uniformity Correction (NUC)

  Manual, Automatic, Semi-Automatic

  Sensor Frame Rate

  50hz

  Sensor Resolution

  640×512

• Features & Performance

  Warranty

  5 Years

  Startup Time

  <10 Seconds, Instant from Standby

  Color Palettes

  White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian

  Picture-in-Picture

  Yes

  Storage Capacity

  32GB

  Connector Output

  Power/Data

  User-Updatable Firmware

  Yes

  Mobile App

  Yes

  Run Time

  4+

  Power Source

  USB-C External, 18650 Battery

  One-Shot Zero

  Yes

  Stand-by Mode

  Yes

  Reticle

  8 (1 Dynamic, 6 Static, 1 DIY)

  Connector Type

  USB-C

  External Power Source

  USB-C

  Country of Manufacture

  China

  Wifi

  Yes

  Onboard Recording

  Yes

  Image Capture

  Yes

  Video Output

  Yes

• Physical

  Mounting Interface

  QD Picatinny

  Housing Material

  Magnesium Alloy

  Weight

  18.70

  Height

  1.81

  Width

  2.99

  Length

  8.50

Export of Thermal Imaging Equipment or related accessories (such as manuals) is strictly regulated by the US Department of State in accordance with the guidelines of the International Traffic in Arms Regulations (ITAR).  It is a major crime to ship or carry US manufactured thermal imaging devices outside the borders of the United States, punishable by fines and prison sentences.  Ignorance of these regulations will not hold up in court.  By purchasing thermal imaging equipment from Thermal Optics Plus, you attest that you will not attempt to export or carry this thermal imaging equipment outside the borders of the United States.  Also, it illegal to allow a non-US Citizen to look through US Thermal Imaging Equipment, even on US soil.  Again, this is a crime punishable by fines and prison sentences.
