Nocpix VISTA H35R Rangefinding Thermal Monocular 640x512 35mm

Nocpix VISTA H35R Rangefinding Thermal Monocular 640x512 35mm

Regular price $2,699.00 Sale

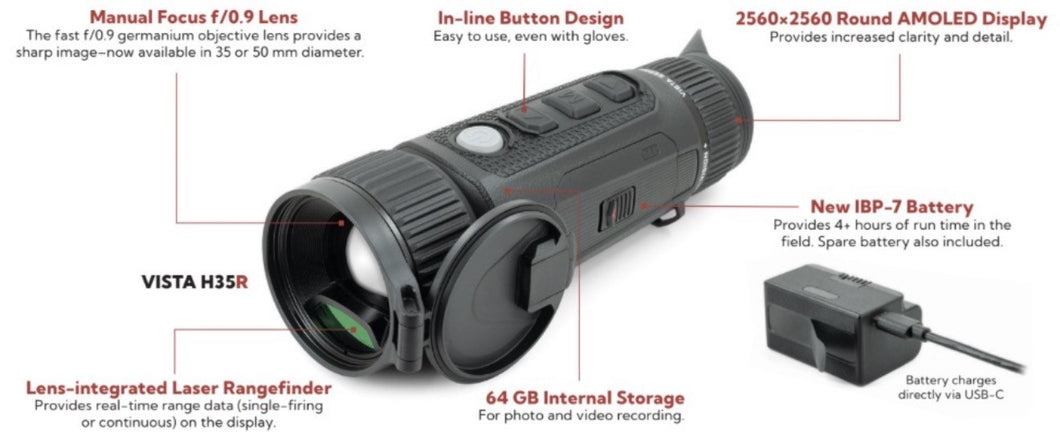

The VISTA handheld thermal monocular features an advanced f/0.9 germanium objective lens, offering exceptional clarity and detail. The original 50 mm model (ideal for long-distance observation) is now joined by a new 35 mm variant with a 3× native magnification, ideal for close and medium range hunting distances. Equipped with a high-resolution 640×512 thermal sensor and an impressive ≤15 mK NETD sensitivity rating, this ergonomic monocular delivers crystal-clear images with remarkable detail and contrast. The lens-integrated laser rangefinder enhances its functionality, boasting a maximum detection range of 1,200 yards with a remarkable sensitivity of ±1 yard. Its ergonomic design ensures comfortable handling, while the intuitive interface allows for seamless operation. VISTA models include electronic image stabilization for a smooth, sharp picture on the 2560×2560 round AMOLED display. Whether you're scanning for coyotes or conducting night-time surveillance, this is your go-to tool for unparalleled thermal imaging performance.

  • Weatherproof rubberized texture increases durability and is not cold to the touch.
  • Advanced R+ image processing provides enhances image quality during digital zoom.
  • Lens-integrated laser rangefinder can fire on command or continuously when scanning.
  • One-of-a-kind circular ultra-high resolution
  • 1.03-inch 2560×2560 AMOLED display.
  • Onboard photo, video, and audio recording.
  • Large, ergonomic objective focus dial for precise control.
  • New Nocpix IBP-7 removable battery pack with direct USB-C charging.
  • 1/4-20 thread socket for quick-plate or tripod mounting.
  • Included soft case with cross-body strap for comfortable carry.
  • Optics

    Display Type

    AMOLED

    Eye Relief

    25mm

    Objective Focal Length

    35mm

    Digital Magnification

    8X

    Diopter Range

    -4 to +6

    Vertical Angular Field of View

    9.4°

    Horizontal Angular Field of View

    12.5°

    Focusing Mechanism

    Manual Focus

    Objective F#

    0.9

    Objective Diameter

    35mm

    Objective Lens Material

    Germanium

    Display Resolution

    2560×2560

    Detection Range

    1750 Yards

    Optical Magnification

    3X

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Ingress Protection

    IP67

  • Sensor Specifications

    Sensor Type

    Nocpix 640

    Sensor Pixel Size

    12μm

    Thermal Sensitivity

    <15mk

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic

    Sensor Frame Rate

    60hz

    Device Technology

    Thermal Imaging

    Sensor Resolution

    640×512

  • Features & Performance

    Warranty

    5 Years

    Startup Time

    <10 Seconds, Instant from Standby

    Rangefinder

    Integrated 1200 yd LRF

    Color Palettes

    White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

    Picture-in-Picture

    Yes

    Storage Capacity

    64GB

    Connector Output

    Power/Data

    User-Updatable Firmware

    Yes

    Mobile App

    Yes

    Run Time

    5+

    Power Source

    USB-C External, IBP-7 Li-ion Battery Pack

    Stand-by Mode

    Yes

    Connector Type

    USB-C

    External Power Source

    USB-C

    Country of Manufacture

    China

    Wifi

    Yes

    Onboard Recording

    Yes

    Image Capture

    Yes

    Video Output

    Yes

  • Physical

    Housing Material

    Polymer

    Weight

    22.58 oz.

    Height

    3.11

    Width

    2.64

    Length

    7.48
