This product is primarily bought and used with the TA-LBSC which makes for a nice leveling head that will attach to picatinny as well the usual arca style plates that the other TA-3 level heads can attach to!

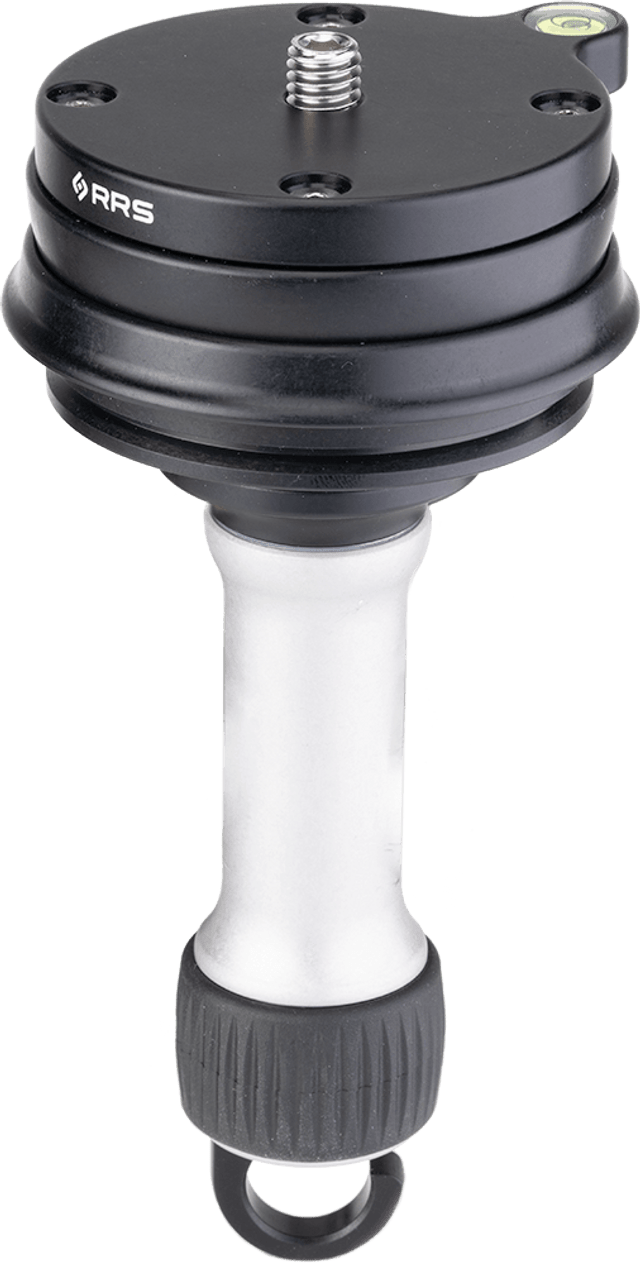

TA-3-LB-HK: SERIES 3 LEVELING BASE WITH TA-UPF Platform and Hook Description:

TA-3 Series 3 Leveling Base:

A leveling base on your tripod is the perfect foundation for gimbal heads, pano gear, fluid heads and even ballheads. Each leveling base offers 15 degrees of leveling capability and locks solidly with just a twist. Choose a leveling base with a flat platform for direct mounting of a tripod head, or choose a leveling base with a clamp if you want quick-change convenience for multiple tripod heads on the same tripod.

This Leveling Base is for the RRS Versa Series 3.

Remove the top plate from your tripod and replace it with this robust leveling base. Twist the handle to lock and unlock the base. Fluid motion allows smooth and fast leveling, no matter the load. At only 12.2 ounces, this is the lightest leveling base of its class on the market. This leveling base incorporates our TA-3-VB Video Bowl. The leveling base can be removed while leaving the video bowl installed. The video bowl will accept any accessory/head that uses a 75mm Video Bowl.

Features

• The lightest leveling base in its class
• Compatible with RRS Versa Series 3 Tripods
• Holds up to 25 lbs without slipping
• Low friction polymer anti-jam plate secures your head solidly and accentuates vibration damping for your load
• Delivers 30 degrees of total leveling capability
•  3/8"-16 Stainless steel stud for mounting tripod head
• Large 12mm diameter bullseye level is easy to see
• Textured rubber grip on bottom of handle is easy to grasp firmly with or without gloves
• Handle is only 2.9 inches long (74mm) and does not significantly impact your ability to drop the tripod to ground level
• CNC machined 6061 aircraft-grade aluminum
• Anodized; Type II Black

TA-UPF Leveling Base Platform:

The TA-UPF platform for RRS Leveling bases is the primary connection point for tripod heads and our B2-LR-ll, B2-LLR-ll, B2-PRO-ll, and TA-LBSC dual clamps. This platform features a 3/8"-16,1/4"-20 dual threaded stud screw, compatible with most tripod heads. This will fit on all TA-2/U/3 past and present leveling bases.

Features

• Fits all RRS Leveling Bases
• Reversible Mounting Stud gives user option of 1/4"-20 or 3/8"-16 male as well as 1/4"-20 female for different head configurations
• Auxiliary M5 x 0.8 tapped holes spaced at 30mm and 45mm apart allow for direct mounting of B2-LR-ll, B2-LLR-ll, B2-PRO-ll, and TA-LBSC clamps

TA-UPF Specs

Country of Origin: USA

• Height: .7" /19mm
• Width: 2.9" /73mm
• Weight: 1.9oz /54g

TA-3-LB-HK Specs

Country of Origin: USA

• Total Height: 6.7" /170mm
• Height Above Tripod: 0.9" /23mm
• Platform Diameter: 2.9" /74mm
• Max Width: 3.6" /91mm
• Tripod Mount Diameter: 2.8" /71mm
• Weight: 13.5oz /383g

In The Box

• (1) TA-3-LB series 3 leveling base with hook
• (1) RRS Universal Leveling base platform
• (1) Series 3 Tripod Video Bowl
• (1) QR User Manual
