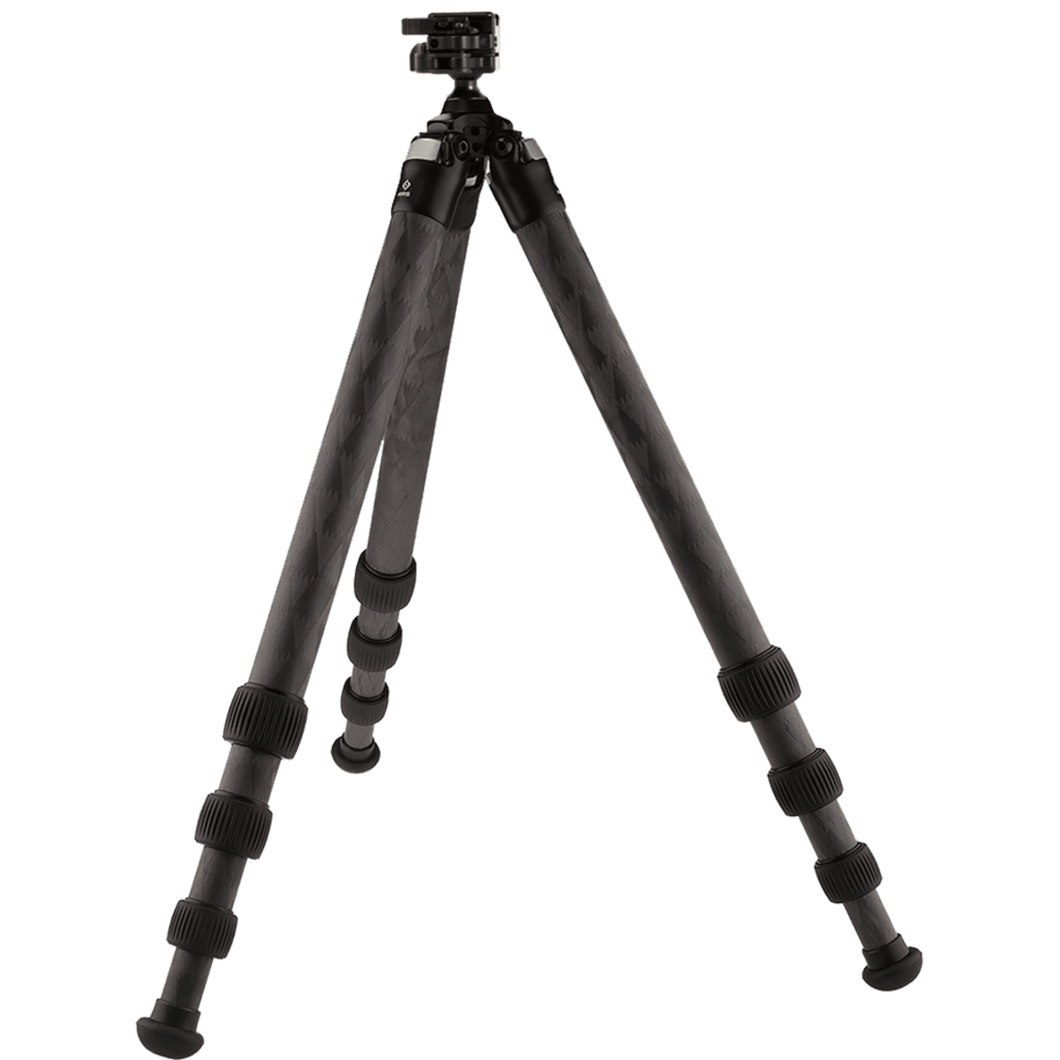

TFCT MK2 Tripod 34 w/ Anvil-30 ARC Head

TFCT MK2 Tripod 34 w/ Anvil-30 ARC Head

$1,625.00 Sale

Overview

The R-LOCK feature in the clamp is a 5mm pin that mates with corresponding R-LOCK holes in the rail. The pin is spring-loaded to automatically engage the R-LOCK holes or be pushed down by non-R-LOCK rails, making it compatible with a wider range of “arca-type” rails. The user also has the option to disengage the pin at their discretion for rapid re-positioning.


The TFCT/SOAR® offers the benefits of both a compact traveler and a solid support-style tripod, all in one. An RRS TFCT tripod is a great solution for shooters who need maximum support but want to keep their tripod as portable as possible. Our unique accessories further expand the utility of these tripods. No other tripod in the world offers this versatility.

AESTHETICS
We value each of these with equal importance. In designing the Really Right Stuff series of tripods, our goal was to create an intuitive, almost second nature usability, allowing you to focus on your passion, not your gear. This tripod will always perform, always hold sure, and always be Really Right.

Features

  • R-Lock R-LOCK (short for Rapid-Lock) System adds unique safety-stop features which are built in to both a mounting rail and quick-release clamp that adhere to the RRS 1.5” Standard. The advantage of the System is the user has multiple “hard-stop” positions along the rail while retaining smooth edges and corners for maximum ergonomics and a snag-free interface that is inherently resistant to wearing down. The ”hard-stop” feature is comprised of a 5mm diameter steel pin that engages 5.5mm diameter holes in the rail. In addition to supplementing the traditional friction-based clamping mechanism, the interface prevents unintentional repositioning of the rail within the clamp when the R-LOCK is engaged.
  • • Adjustable clamp jaw allows compatibility with many other arca-type rails that are not in spec with the RRS 1.5" Dovetail Standard
  • • O-rings help keep threads clean and smooth while providing better tactile feedback
  • • Vented clevis design allow legs to collapse faster without pressure buildup
  • • Threaded sockets on the sides of the apex provide better placement for accessories like QD attachments or a BC-18
  • • Patent-pending Taper Lock System secures the ball head inside the apex making it unable to slip
  • • Offset Leg Joints: Tripods must occasionally withstand tremendous bending and torsion loads. It is crucial that the leg angle stops and all other structural joints are well supported. Our patented offset leg joints fully support the leg angle stops allowing loads to be transferred straight through the strongest members of the tripod. This also means the tripod is more compact when collapsed.
  • • Rubber Ball Feet: Large diameter teardrop shape keeps leg sidewalls from touching the ground even at the lowest settings and makes positive contact with the ground at virtually any angle.
  • • Anodized, Type 3 Black
  • • High strength to weight ratio
  • • Made from CNC-machined 6061 T6 Aluminum
  • • Solid ring apex for strength and reliability
  • • Ergonomic spring-loaded pull tabs with visual lock/unlock
  • • Fast, modular and customizable design

    • Specs

    TFCT-34
  • Leg Material: Carbon Fiber
  • Number of Leg Sections: 4
  • Load Capacity 1st Position Fully Extended: 85lbs/ 39kg
  • Load Capacity 2nd Position Fully Extended: 50lbs/ 23kg
  • Load Capacity 3rd Position Fully Collapsed: 70lbs/ 32kg
  • 1st Position Maximum Height: 60.8"/ 155cm
  • 1st Position Minimum Height: 21.8"/ 55cm
  • 1st Position 3/4 Segments Extended: 46.7"/ 119cm
  • 2nd Position Maximum Height: 42.7"/ 109cm
  • 2nd Position Minimum Height: 16.3"/ 41cm
  • 3rd Position Minimum Height: 6.4"/ 16cm
  • Folded Length: 23.6"/ 60cm
  • Folded Diameter: 4.1"/ 10cm
  • (Heights and Length include the Anvil-30 Ball head attached)
  • Weight: 4.79lbs/ 2173g

    • In the Box

    1. (1)  TFCT-34 Mk2 SOAR® Series 3 Carbon Fiber Tripod
    2. (1) Anvil-30 ARC Ball head (Installed)
    3. (2) 3/16" hex keys (required to adjust leg angle tension)
    4. (1) 9/64" hex key (required to loosen/tighten Anvil-30 screws)
    5. (1) User's guide
