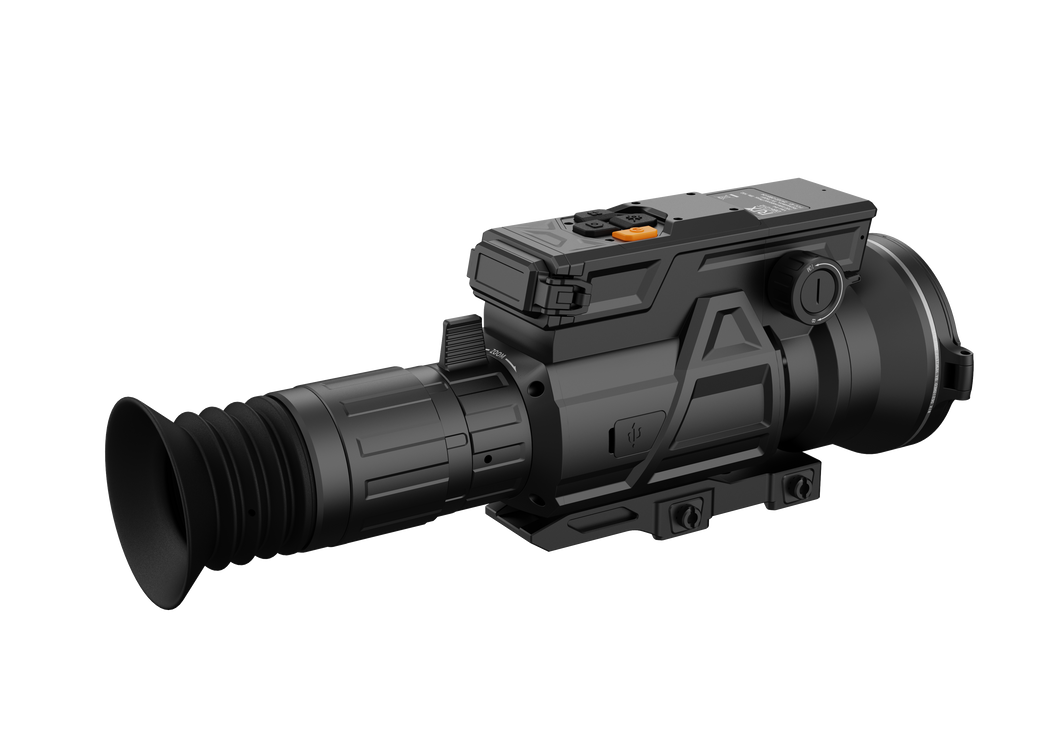

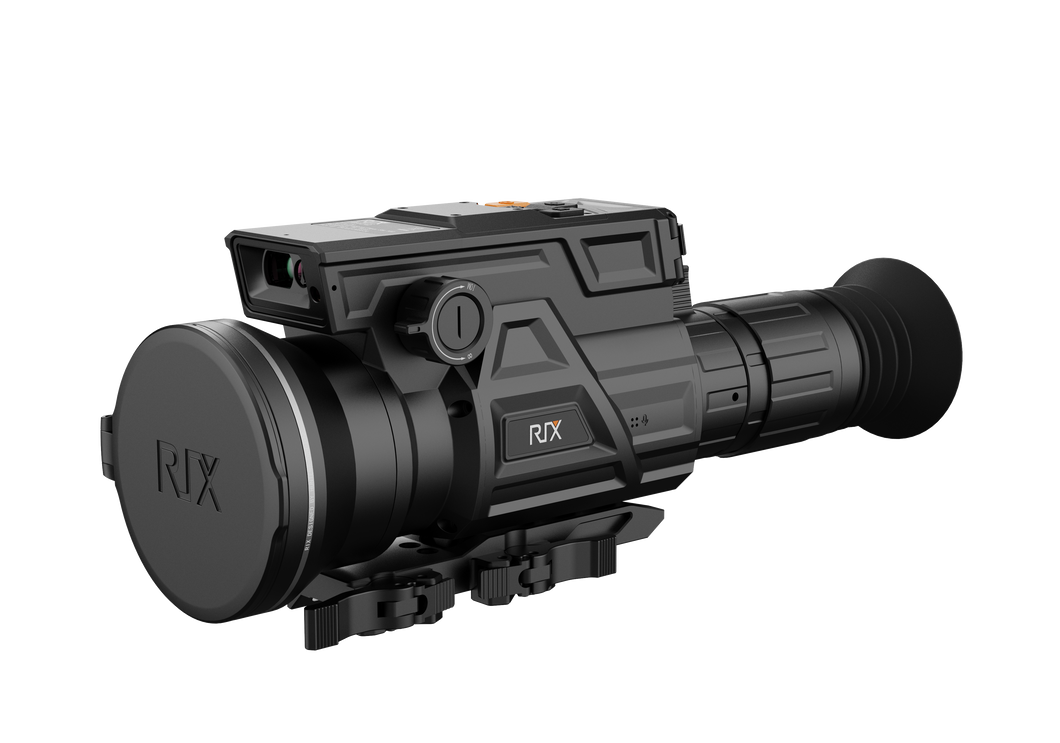

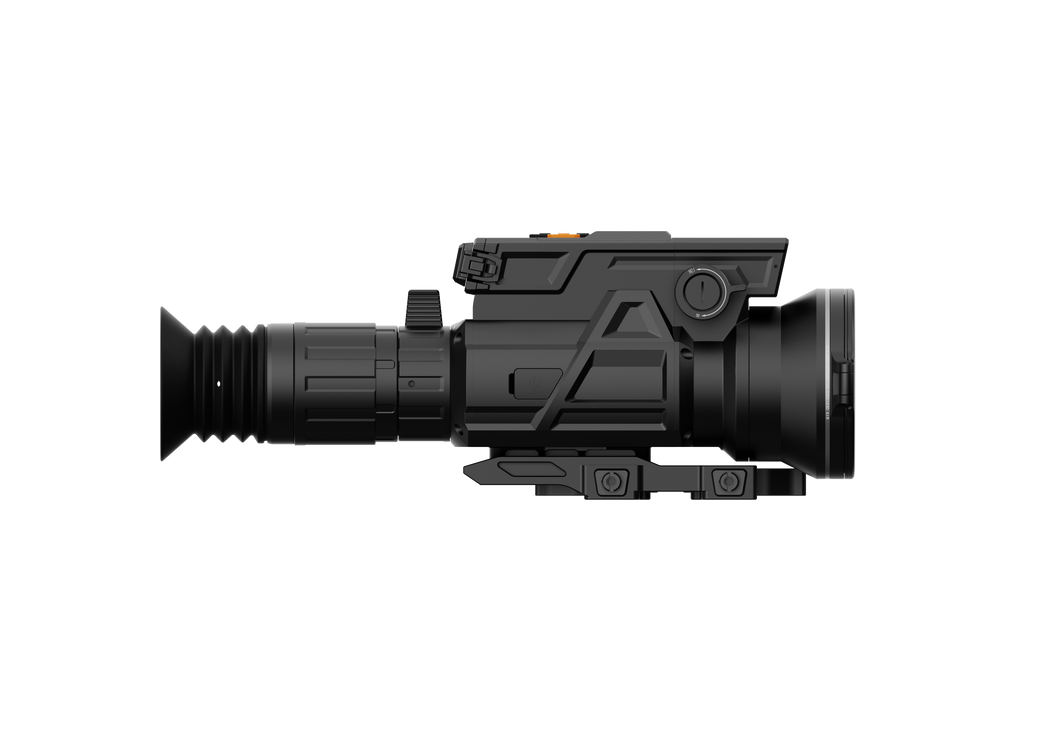

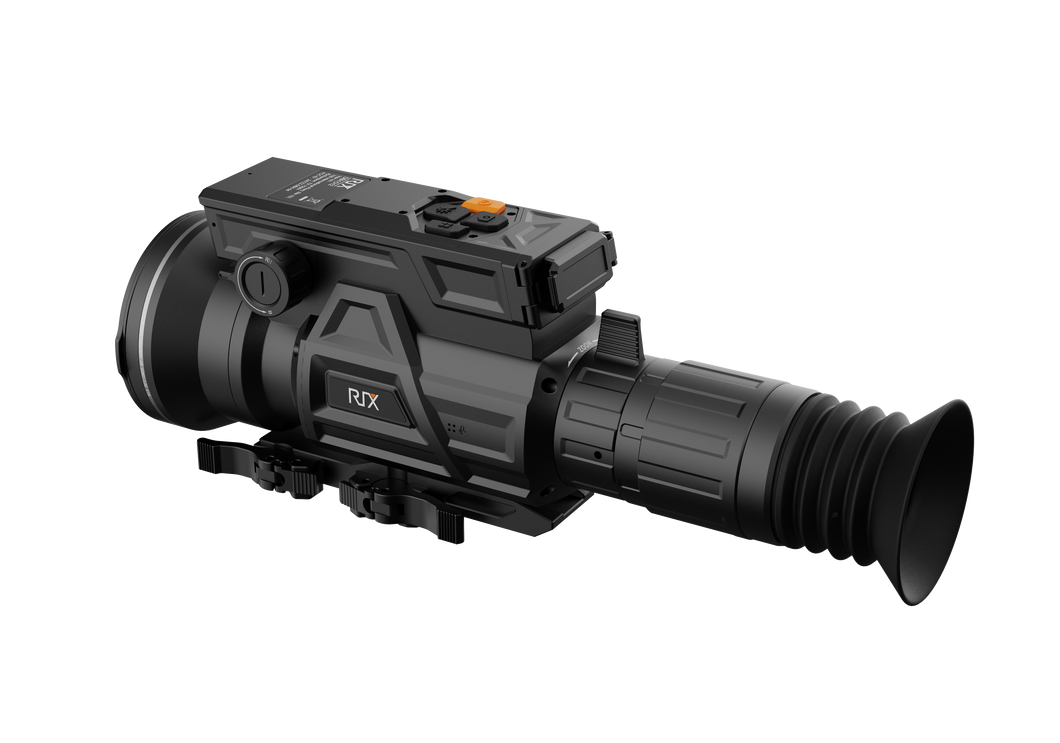

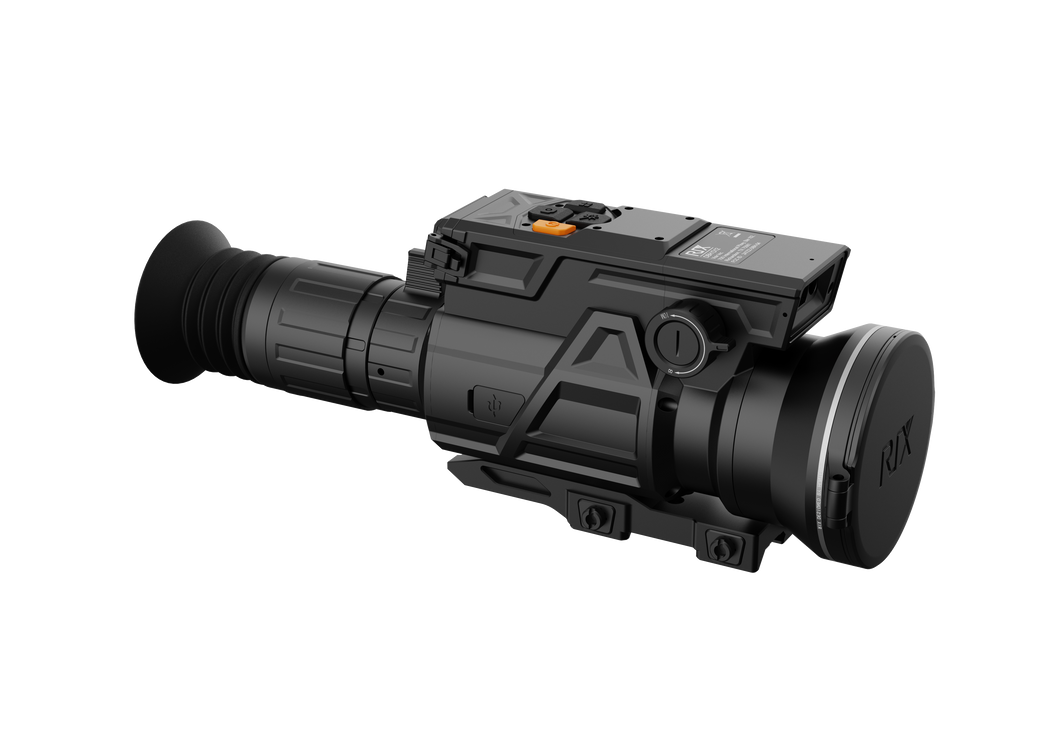

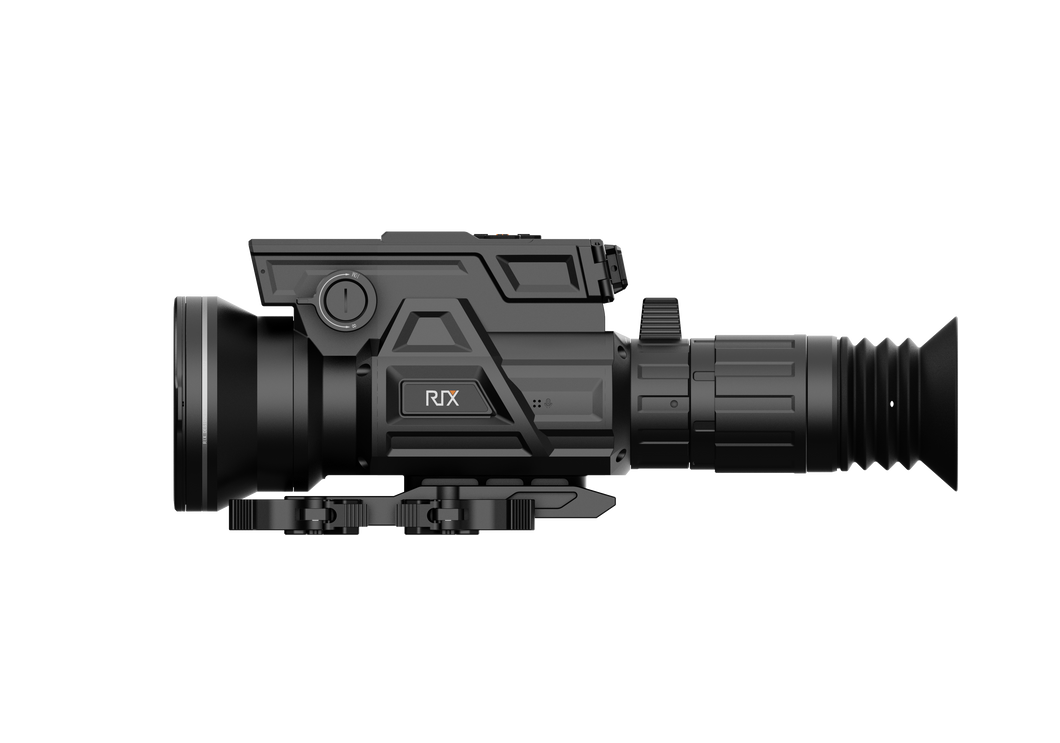

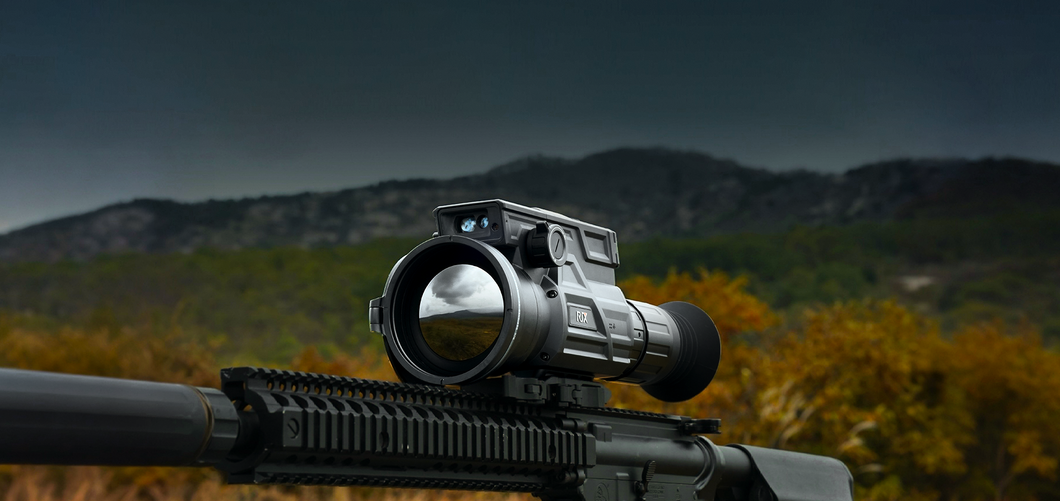

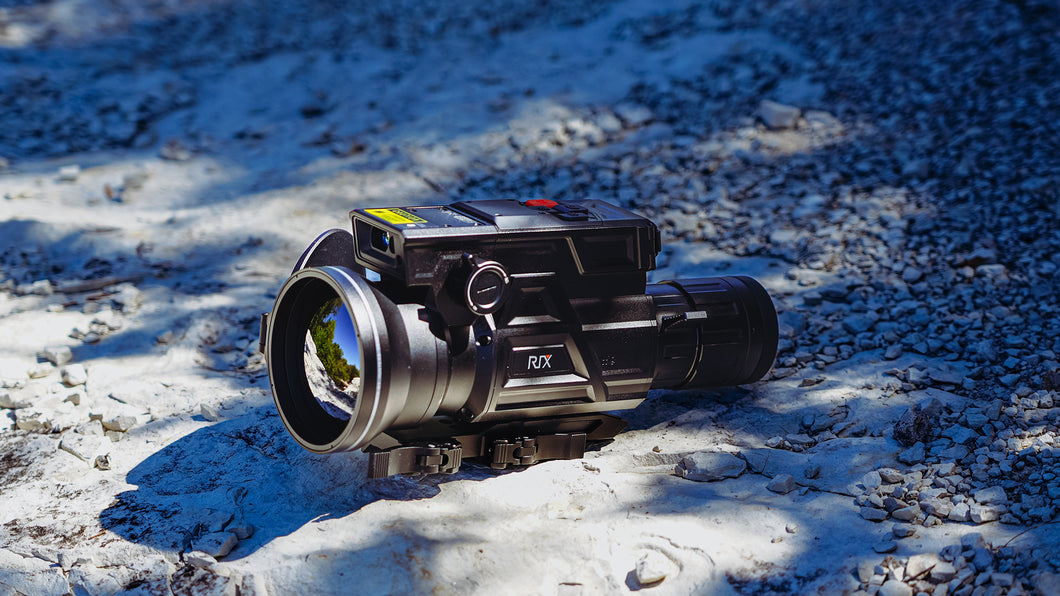

Rix DBH D12 LRF 75mm 1280 3x Thermal Rifle Scope

RIX DBH D12 LRF 1280X1024 12UM 50HZ 3X THERMAL RIFLE SCOPE

Designed by Hunters, for Hunters.

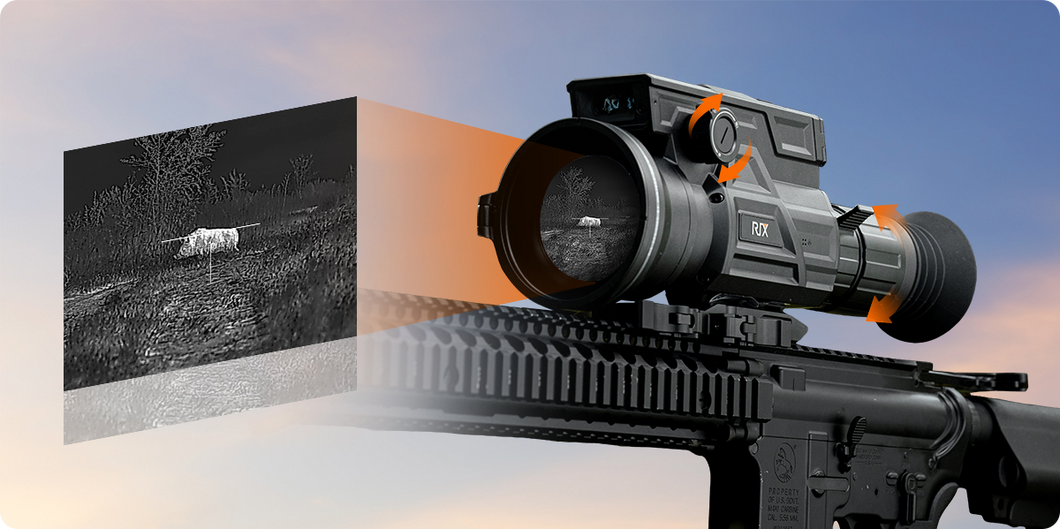

Introducing the DBH D12, the ultimate tool for hunting, observing, tracking and seeing at night. Equipped with cutting-edge thermal imaging technology and high-sensitivity infrared detectors, the DBH D12 ensures exceptional performance, even in challenging weather conditions like rain, snow, fog, and haze. Built to excel in observation and geographic positioning, the DBH D12 boasts a versatile suite of features, including photography, video recording, laser range finding (LRF), a laser pointer, digital zoom, picture-in-picture (PIP), and recoil-activated video capture. Whether you're scouting, tracking, or documenting, the DBH D12 is designed to meet your every need in the field.

Introducing the DBH D12, the ultimate tool for hunting, observing, tracking and seeing at night. Equipped with cutting-edge thermal imaging technology and high-sensitivity infrared detectors, the DBH D12 ensures exceptional performance, even in challenging weather conditions like rain, snow, fog, and haze. Built to excel in observation and geographic positioning, the DBH D12 boasts a versatile suite of features, including photography, video recording, laser range finding (LRF), a laser pointer, digital zoom, picture-in-picture (PIP), and recoil-activated video capture. Whether you're scouting, tracking, or documenting, the DBH D12 is designed to meet your every need in the field.

The DBH D12 is equipped with a 1280×1024，12μm sensor boasting NETD ≤ 15mK and 50Hz refresh rate, ensuring hunters always get clearer and smoother images. This unit features a 400 nit retina display offering 2560 OLED resolution, 3528 ppi detail, and 7.2 μm ultra-fine pixels, with 256-level grayscale providing smooth tonal transitions and rich shadow details.

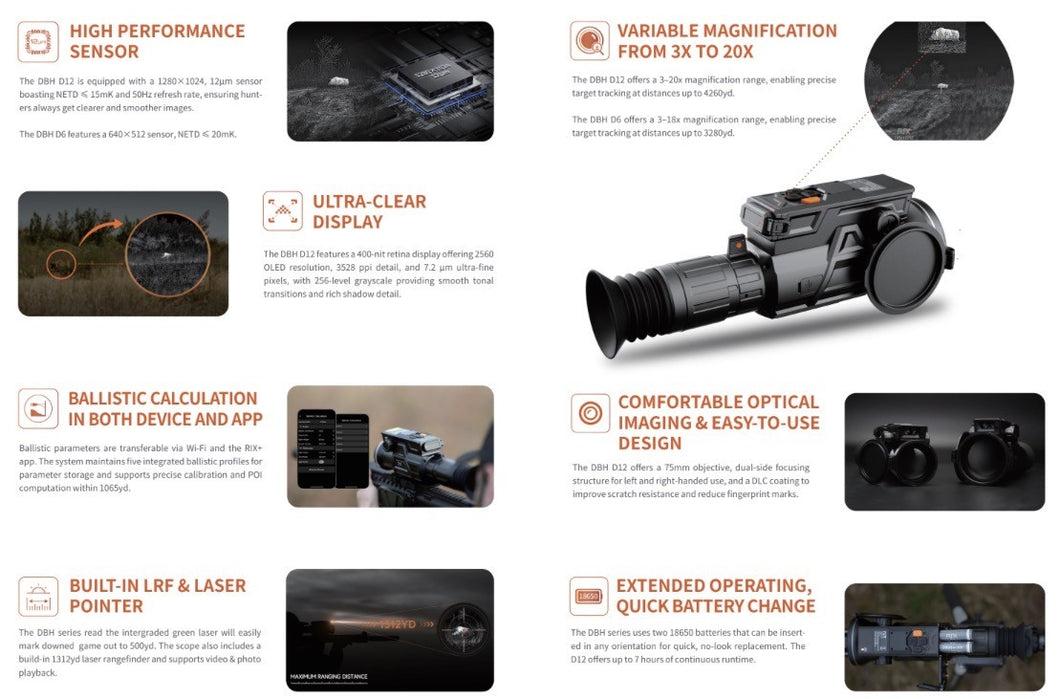

RIX DBH D12 LRF 1280 Key Features:

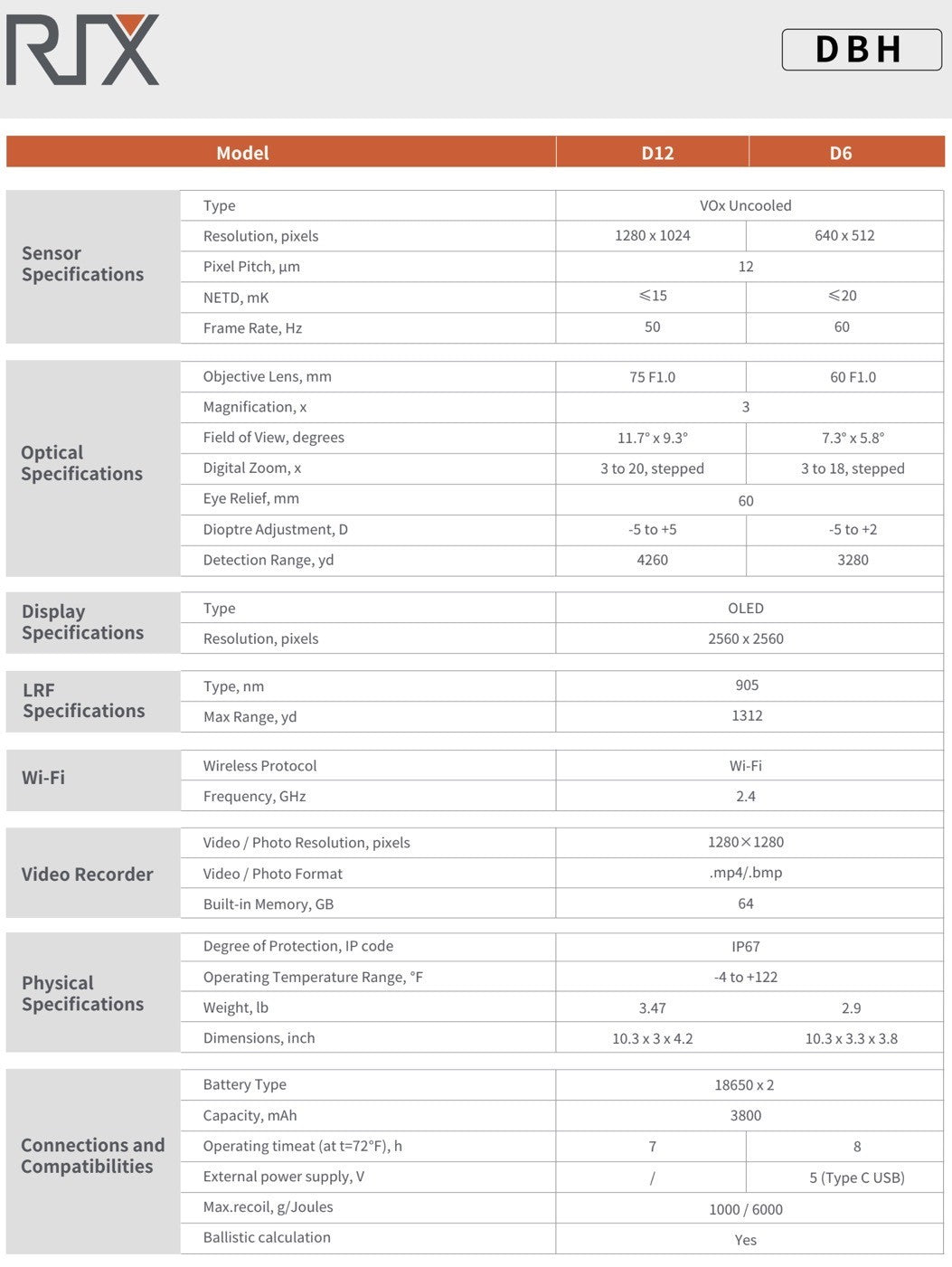

RIX DBH D12 LRF 1280 Specifications:

Sensor Specifications

Type VOx Uncooled
Resolution,pixels 1280×1024
Pixel Pitch, μm 12
NETD, mK ≤15
Frame Rate, Hz 50

Optical Specifications

Optical Specifications 75 F1.0
Optical Zoom, x3
Field of view, degrees 11.7×9.3
Digital zoom, x 3 to 20, stepped
Eye relief, mm 60
Diopter adjustment, D -5 to +5
Detection range, yd 4260

Display Specifications

Type OLED
Resolution, pixels 2560 x 2560

LRF Specification

Type, nm 905
Max Range, yd 1200

Wi-Fi

Wireless Protocol Wi-Fi
Frequency, GHz 2.4

Video Recorder

Video / Photo Resolution, pixels 1280×1280
Video / Photo Format .mp4/.bmp
Built-in Memory, GB 64

Physical Specification

Degree of Protection, IP code IP67
Operating Temperature Range, °F -4 to +122
Weight, lb 3.47
Dimensions, inch 10.3×3×4.2

Connections and Compatibility

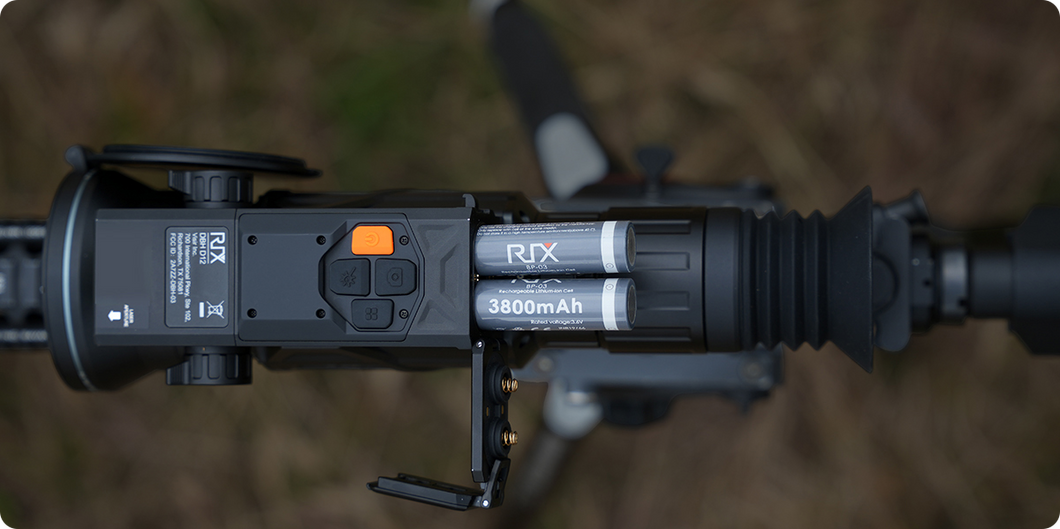

Battery Type 18650×2
Capacity, mAh 3800
Operating timeat (at t=72 °F ), h 7
Max.recoil, g / Joules 1000 / 6000

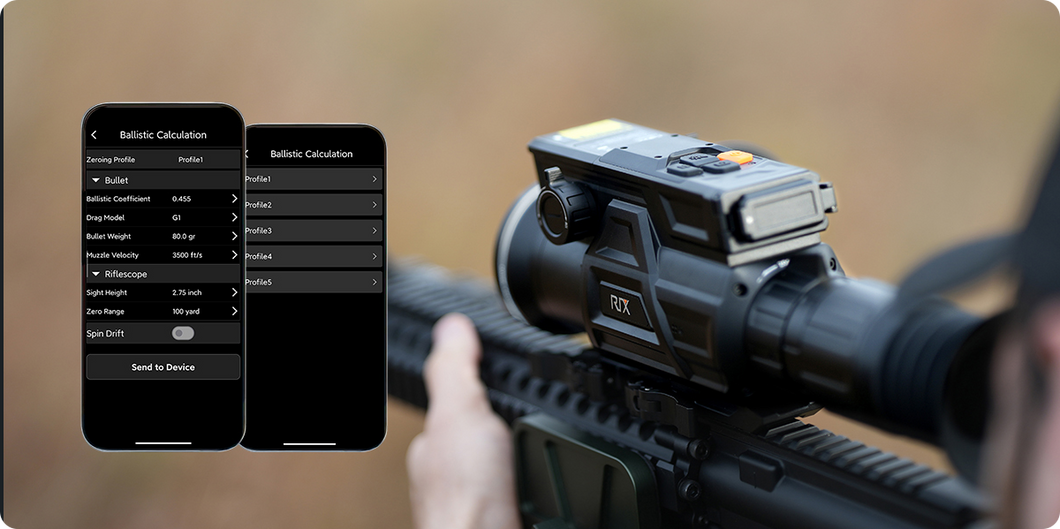

Ballistic calculation Yes

Manufacture website

https://www.rixoptics.com/dbh-thermal-imaging-rifescopes/

Whats in the box:

The DBH series thermal imaging device

Picatinny Mount

Package bag

Eyepiece hood

Battery compartment

cover (with screw)

Thermal target × 10

Battery charger

USB type c cable

Battery x4

Lens cloth

Hex key

Screwdriver

Screw × 6
