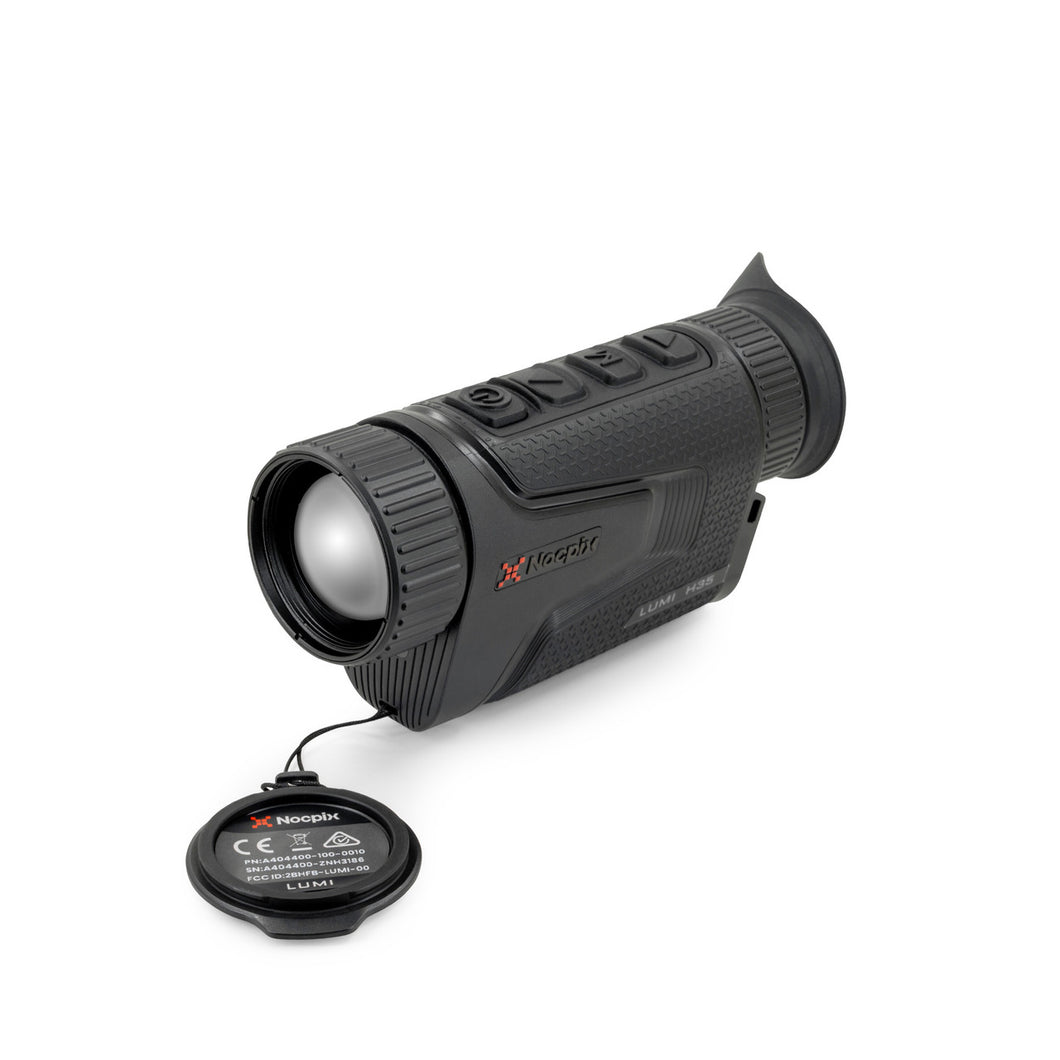

Nocpix LUMI H35 Compact Thermal Monocular 640x512 35mm
Regular price
$2,199.00
LUMI brings the power of thermal observation devices to a compact and user-friendly form-factor for hunters on-the-go. The all-new LUMI series of handheld thermal monoculars features a high quality thermal sensor, available in 384x288 (L35) or 640x512 (H35) paired with a 1024x768 AMOLED display. Available models offer either a 2.5x base magnification (H35) for a wider field of view, or a 4x base magnification (L35) for identifying targets at greater distances.
Our advanced Reality+ image processing algorithm and a ≤18 mK NETD (thermal sensitivity) rating provide sharp, high-contrast images. Powering the LUMI is simple and affordable using common interchangeable 18650 style batteries. As a powerful tool for scouting and scanning, LUMI was designed to be as compact and ergonomic as possible while still offering impressive image detail and clarity; LUMI weighs 12 ounces and easily fits in the palm of the hand, a pocket, or the included MOLLE-compatible case.
- Lightweight and compact design easily fits in a pocket or the include MOLLE-compatible pouch.
- Weatherproof rubberized texture increases durability and is not cold to the touch.
- Powered by a common 18650 style rechargeable battery with a spare battery included.
- Advanced R+ image processing provides enhances image quality during digital zoom.
- Onboard photo, video, and audio recording.
- Comfortable ambidextrous vertical design.
-
Optics
Objective Focal Length35mm
Display TypeAMOLED
Eye Relief25mm
Digital Magnification8X
Diopter Range-5 to +5
Vertical Angular Field of View9.4°
Horizontal Angular Field of View12.5°
Focusing MechanismManual Focus
Objective F#0.9
Objective Diameter35mm
Objective Lens MaterialGermanium
Display Resolution1024×768
Detection Range1750 Yards
Optical Magnification2.5X
-
Environmental Specifications
Operating Temperature Range-4°F~122°F
Ingress ProtectionIP67
-
Sensor Specifications
Device TechnologyThermal Imaging
Sensor Pixel Size12μm
Thermal Sensitivity<18mk
Non-Uniformity Correction (NUC)Manual, Automatic, Semi-Automatic
Sensor Frame Rate50hz
Sensor TypeNocpix 640
Sensor Resolution640×512
-
Features & Performance
Warranty5 Years
Startup Time<10 Seconds, Instant from Standby
Color PalettesWhite Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Picture-in-PictureYes
Storage Capacity32GB
Connector OutputPower/Data
User-Updatable FirmwareYes
Mobile AppYes
Run Time4+
Power SourceUSB-C External, 18650 Battery
One-Shot ZeroYes
Stand-by ModeYes
Connector TypeUSB-C
External Power SourceUSB-C
Country of ManufactureChina
WifiYes
Onboard RecordingYes
Image CaptureYes
Video OutputYes
-
Physical
Housing MaterialPolymer
Weight11.82 oz
Height2.91
Width1.84
Length5.63
Export of Thermal Imaging Equipment or related accessories (such as manuals) is strictly regulated by the US Department of State in accordance with the guidelines of the International Traffic in Arms Regulations (ITAR). It is a major crime to ship or carry US manufactured thermal imaging devices outside the borders of the United States, punishable by fines and prison sentences. Ignorance of these regulations will not hold up in court. By purchasing thermal imaging equipment from Thermal Optics Plus, you attest that you will not attempt to export or carry this thermal imaging equipment outside the borders of the United States. Also, it illegal to allow a non-US Citizen to look through US Thermal Imaging Equipment, even on US soil. Again, this is a crime punishable by fines and prison sentences.
