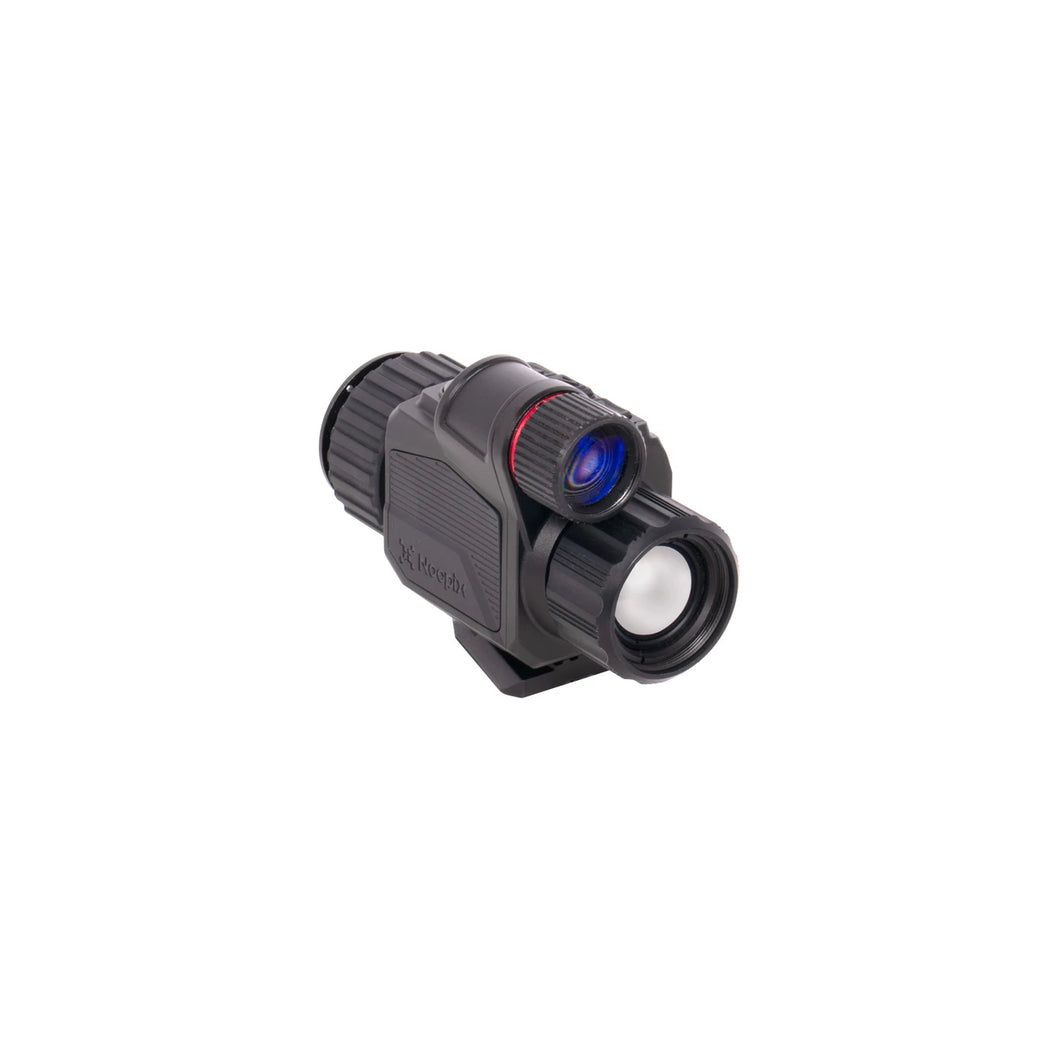

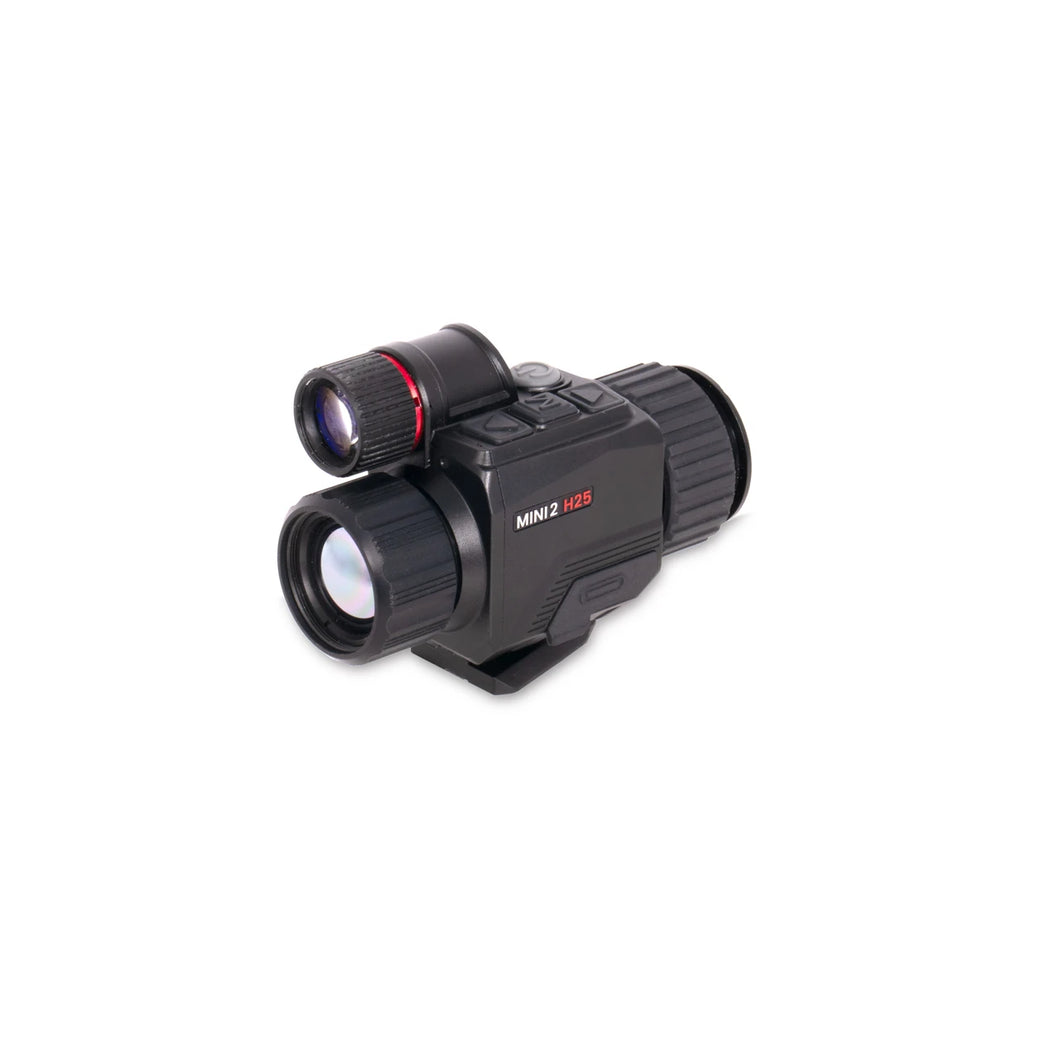

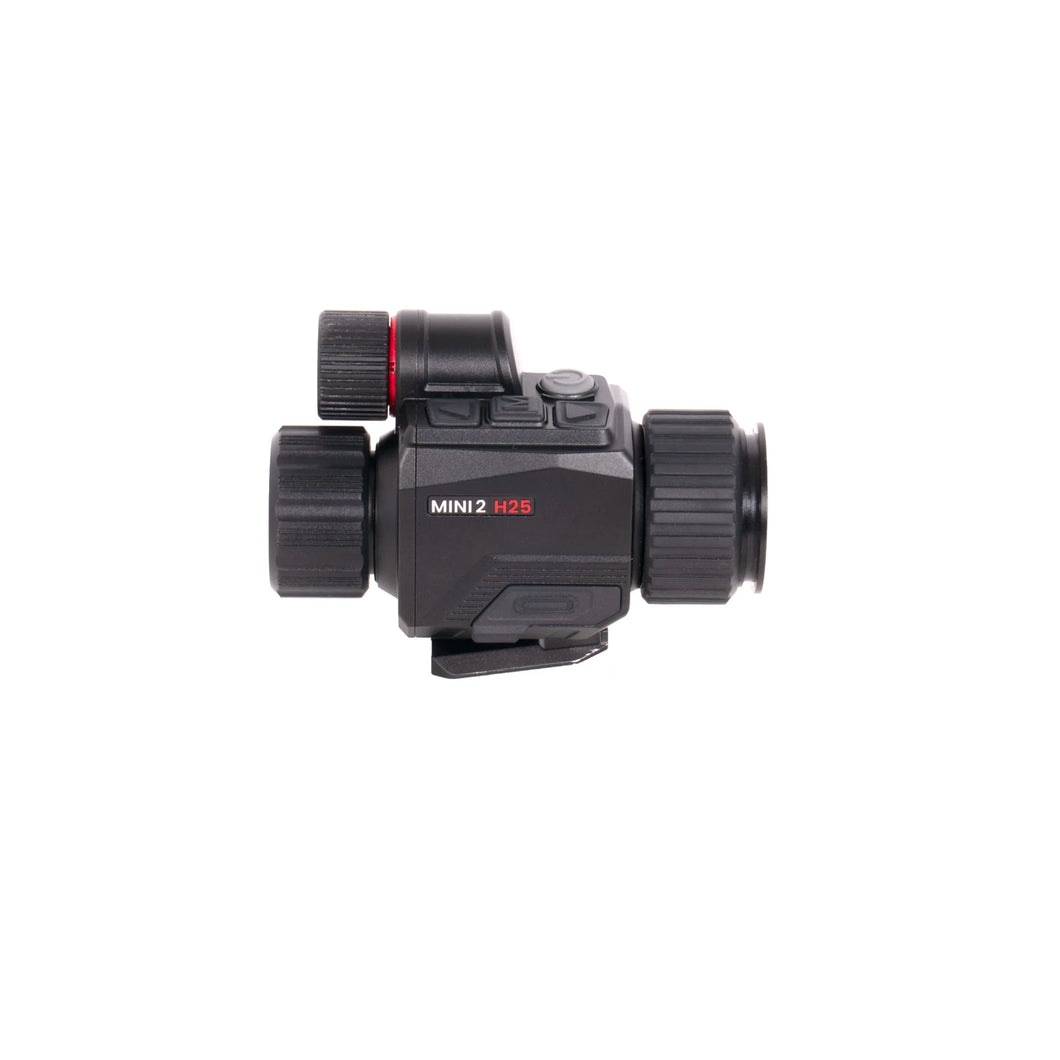

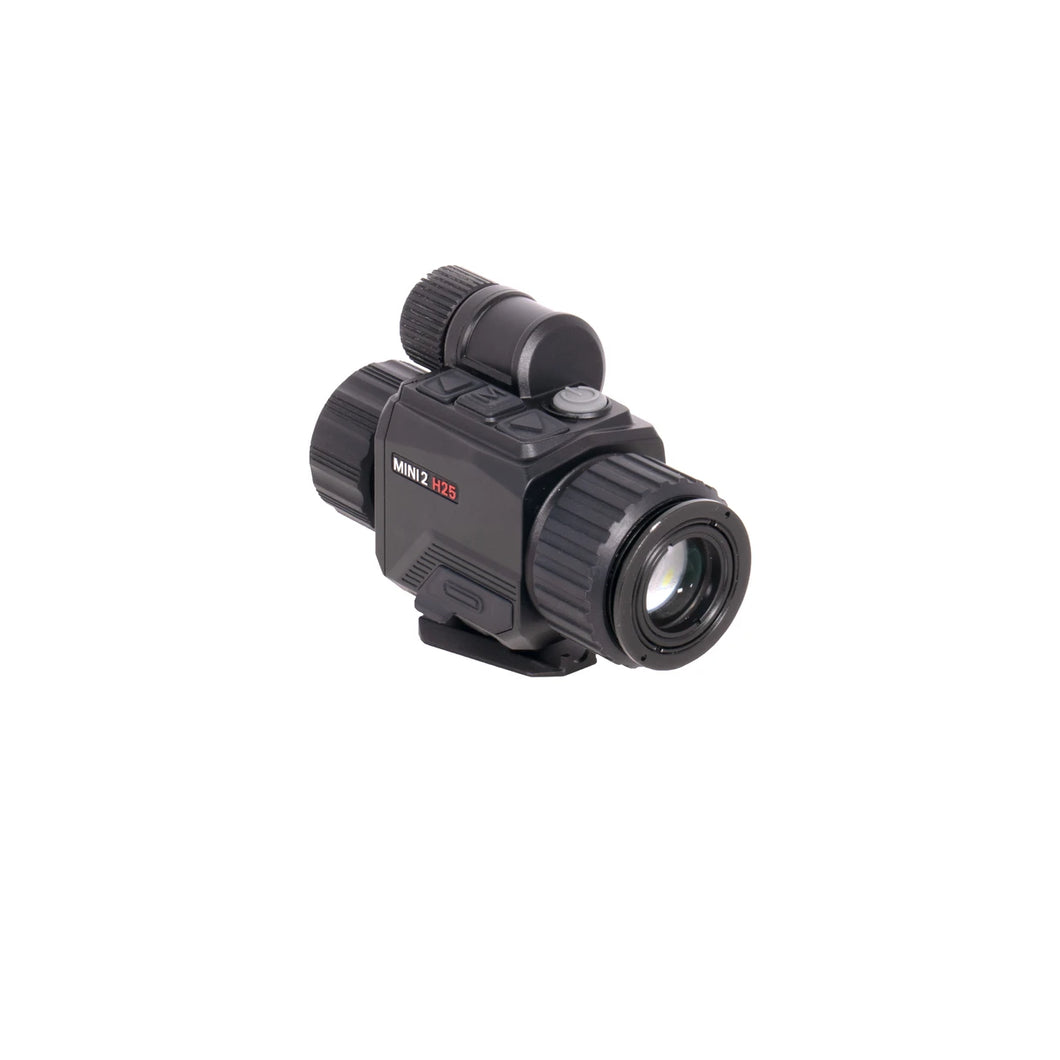

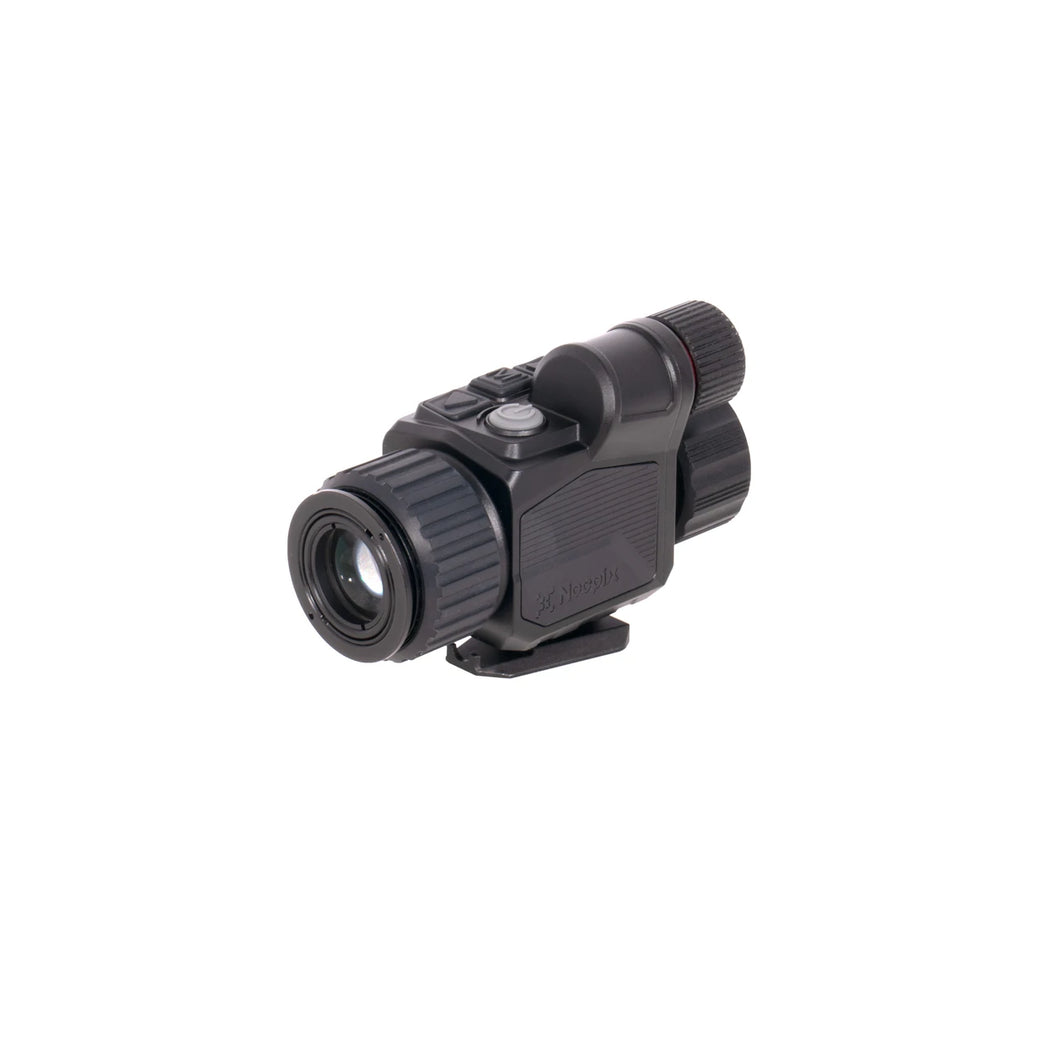

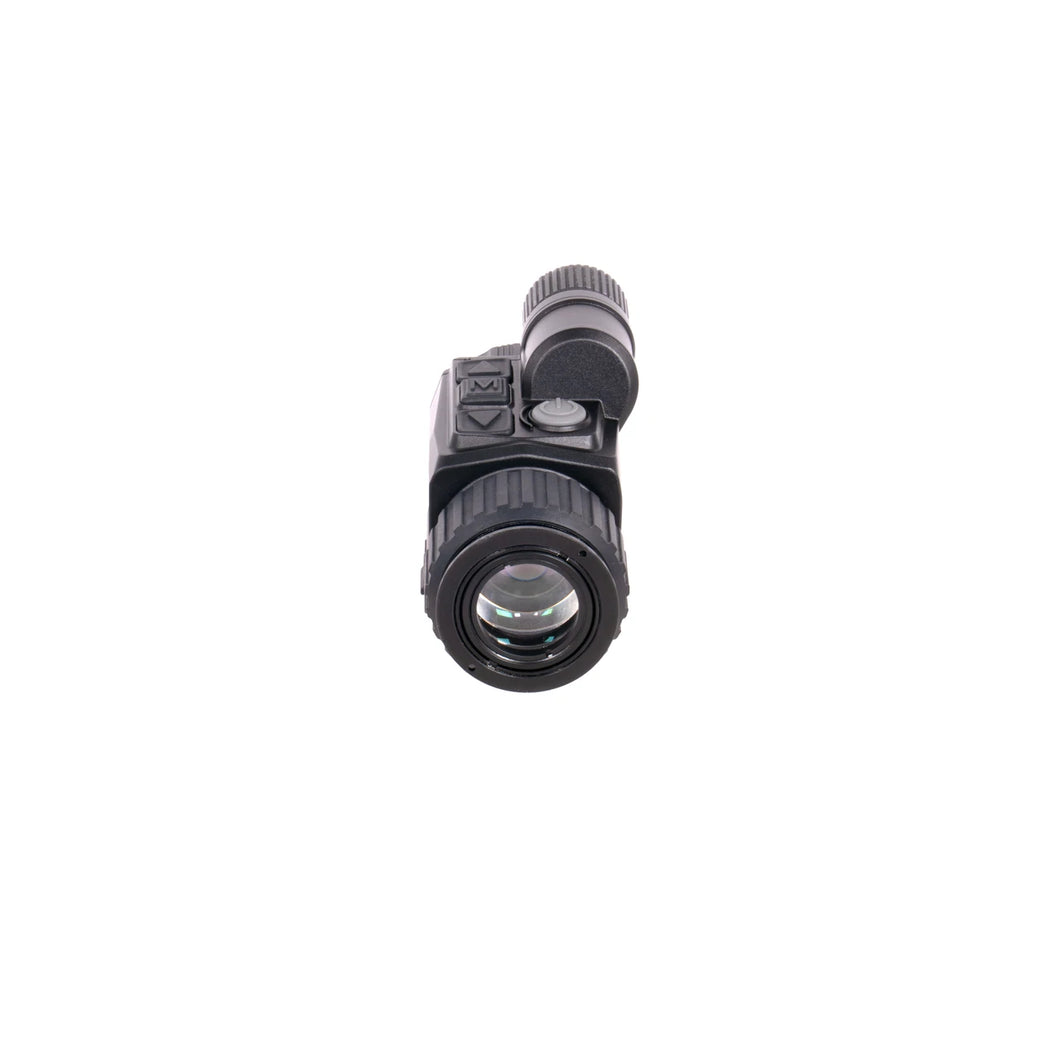

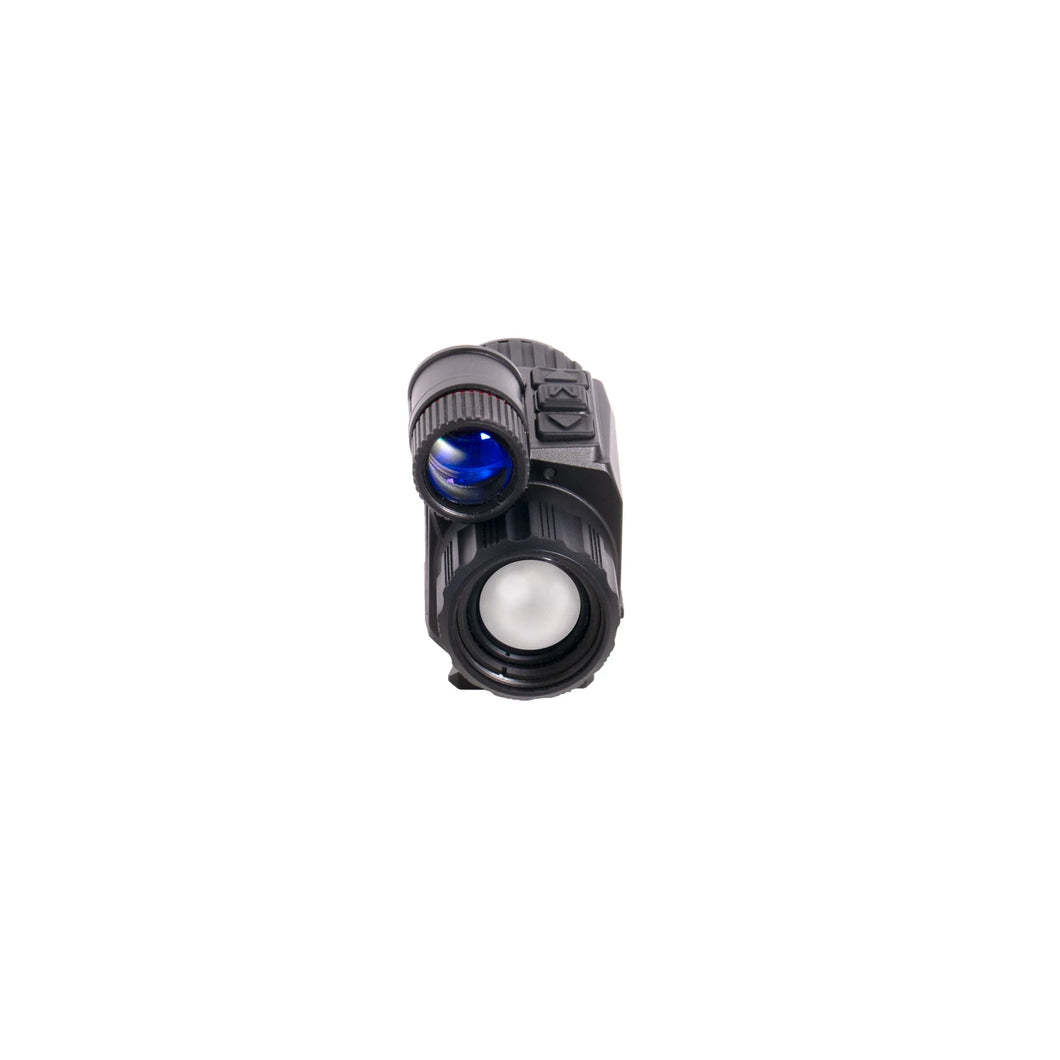

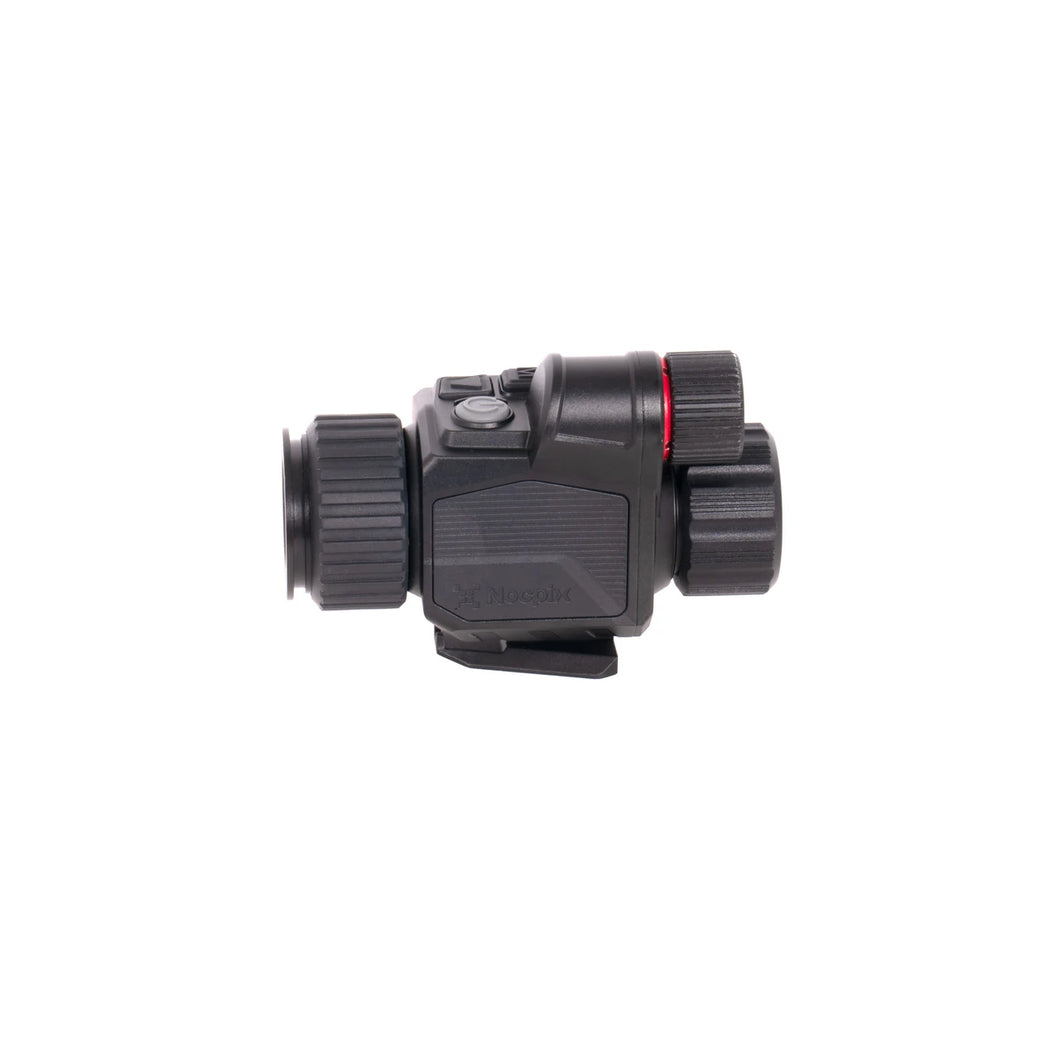

The Nocpix MINI2 H25 is a compact, lightweight thermal imaging device engineered for both handheld and helmet-mounted operation. Its versatile design enables seamless transition between use as a handheld monocular and integration with a helmet-mounting system for hands-free applications. Equipped with a high-performance 60 Hz, 12 μm thermal sensor and advanced Reality+ image processing, the MINI 2 delivers exceptional image clarity and detail across a wide range of conditions. The system features a 640×512 resolution thermal core paired with a 1280×1024 AMOLED display, providing a sharp, high-contrast viewing experience within a highly portable form factor. In addition to thermal imaging, the MINI2 incorporates digital night vision functionality with optional thermal overlay, allowing users to utilize fusion imaging for enhanced target recognition and situational awareness. The device also includes onboard audio and video recording capabilities, supported by 32 GB of internal storage, enabling users to capture, store, and review critical moments directly from the unit.
- Dual-sensor imaging system allows the user to transition between digital night vision, thermal, and thermal fusion overlay
- Lightweight helmet mounted design with integrated dovetail shoe
- Internal battery and the included external helmet mountable battery pack allows 4+ hours of operation
- Onboard photo, video, and audio recording.
-
Detection Range
1420 yards
Vertical Angular Field of View
14.1°
Horizontal Angular Field of View
17.6°
Focusing Mechanism
Manual Focus
Display Resolution
960x540
Objective Focal Length
25 mm
Objective Lens Material
Germanium
-
Operating Temperature Range
-4°F~122°F
Recoil Rating
1000 g/s² (300 Win./7mm Mag)
-
Device Technology
Thermal Imaging
Sensor Resolution
640x512 NV 960x540
Thermal Sensitivity
<15mk
Non-Uniformity Correction (NUC)
Manual, Automatic, Semi-Automatic
-
Power Source
USB-C External, NBP-7 Li-ion Battery Pack
Country of Manufacture
China
Startup Time
<10 Seconds, Instant from Standby
Rangefinder
Integrated 1600 yd LRF
Color Palettes
White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
Connector Output
Power/Data
User-Updatable Firmware
Yes
Reticle
8 (1 Dynamic, 6 Static, 1 DIY)
External Power Source
USB-C, external battery pack
-
Mounting Interface
QD Picatinny
Housing Material
Aluminum
Export Restriction:
Export of Thermal Imaging Equipment or related accessories (such as manuals) is strictly regulated by the US Department of State in accordance with the guidelines of the International Traffic in Arms Regulations (ITAR). It is a major crime to ship or carry US manufactured thermal imaging devices outside the borders of the United States, punishable by fines and prison sentences. Ignorance of these regulations will not hold up in court. By purchasing thermal imaging equipment from Thermal Optics Plus, you attest that you will not attempt to export or carry this thermal imaging equipment outside the borders of the United States. Also, it is illegal to allow a non-US Citizen to look through US Thermal Imaging Equipment, even on US soil. Again, this is a crime punishable by fines and prison sentences.
